High Viscosity & High Capacity PR Pump
Model TP-72S
- DC Servo motor pump for constant dispenses
- Separated Controller and Touch pad
- Touch pad can control up to 16 pumps
- Edgeless Outer Type Bellows
- Step dispenses
- 7 Recipes can be applied
- Compact sized PR pump and Controller (1controller Covers 2pumps)
- Save Maintenance Time
· Easy Purge Function (bottle → Pump → Nozzle)

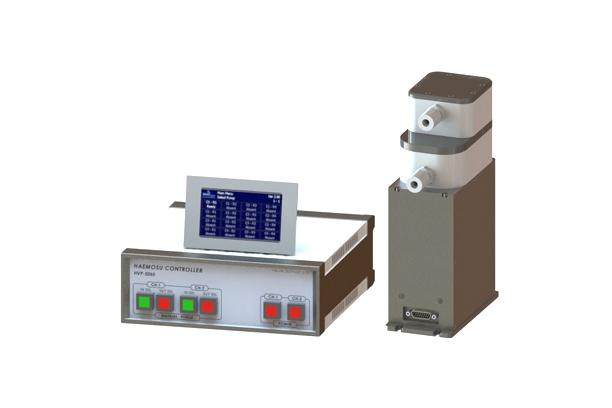

Configuration
Specifications
| Process | Description |
| Dispense Volume Range | 1.0cc~20.0cc |
| Dispense/Reload Rate | 0.3cc/sec~1.2cc/sec |
| Dispense Volume Resolution | 0.05cc |
| Dispense Repeatability | ≤±0.04(Polymide PIX/PIQ) |
| Viscosity | 200~20,000cp |
| Utility | Description |
| Electric Power | 100VAC or 220VAC, 50/60Hz |
| Air | 0.1 ~ 0.3Mpa |
| Resist In/Out | 3/8 Inch Teflon |
| Hardware | Description | ||
| Weight | Controller / Touch Pad | 3.30kg / 0.64kg | |
| Pump | 5.50kg | ||
|
Dimension |
Controller / Touch Pad | 250x261x94 / 140x44x88 | |
| Pump | 87x168x286 | ||
Remarks
1. The distance between the pump & the PR bottle must be less than 1.5meter
2. The filter installation may be possible under 200cP
3. In case of over 1.5meter & 200cP, Strongly recommended to discuss talon Tech Co.,Ltd
Characteristics
