Color PR Pump (CIS)
Model TP-52R

- DC Servo motor pump for costant dispenses

- Driving Method
  · Simple Diaphragm

- Save Maintenance Time
  · Easy to dis/assemble the diaphragm as an option

- Signal is same as RRC Pump (ACT/MARK)
  · No need for the extra controller

- Supply the additional diaphragm

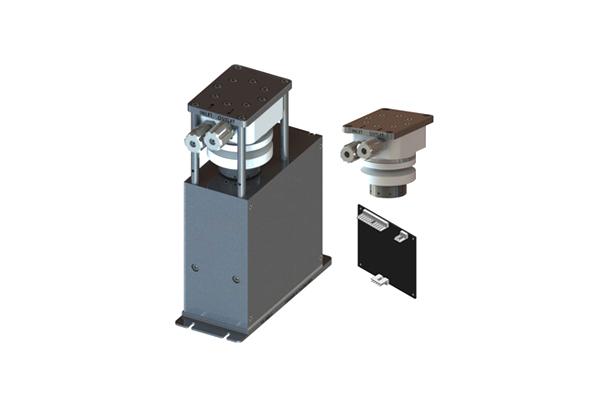

Configuration









Specifications

Process	Description
Dispense Volume Range	0.5cc~7.0cc
Dispense/Reload Rate	0.5cc/sec~4.0cc/sec
Dispense Volume Resolution	0.05cc
Dispense Repeatability	≤±0.05(0.8cp, 23℃)
Viscosity	Max : 500cp



Electrical Specification	Description
Drive System	Dc Servo Motor, Drive Current : 300~500mA/cycle
Power System	Motor Driver : DC24V, Home Sensor : DC5V



Hardware	Description
Input Pulse vs Dispense Volume	812 pulse(full step) /1cc
Resist In/Out	1/4 Inch Teflon
Input Pulse vs Encoder Output Pulse	Full step-1:1
Weight	3.3kg
Dimension	72(W) x 175(L) x 230(H)mm

Remarks

1. The distance between the pump & the PR bottle must be less than 1.5meter

2. The filter installation may be possible under 200cP

3. In case of over 1.5meter & 200cP, Strongly recommended to discuss talon Tech Co.,Ltd







Characteristics
