제품 상세 정보

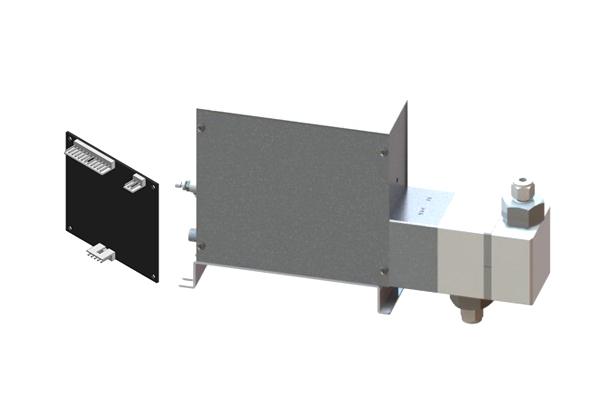

DC Servo Motor Pump for Constant Dispenses
Model TR-34R

- Driving Method
  Edgeless Outer Type Bellows, No ripple & No Shaking.

- Signal is same as RRC Pump (ACT/MARK)





Specifications

Process Description
Dispense Volume Range  0.8cc~10.0cc
Dispense/Reload Rate 0.3cc/sec~3.0cc/sec
Dispense Volume Resolution 0.02cc
Dispense Repeatability ≤±0.05(2.2cp, 23℃)
Viscosity Max : 800cp



Electrical Specification Description
Drive System DC Servo Motor, Drive Current : 300~500mA/Cycle
Power Source Motor Driver : DC24V, Home Sensor : DC5V



Hardware Description
Input Pulse vs Dispense Volume 800 pulse(full step) /1cc
Resist In/Out 1/4 Inch Teflon
Input Pulse vs Encoder Output Pulse Full step-1:1
Weight 3.2kg
Dimension 56(W)x285(L)x173(H)mm





Remarks

1. The distance between the pump & the PR bottle must be less than 1.5meter

2. The filter installation may be possible under 200cP

3. In case of over 1.5meter & 200cP, Strongly recommended to discuss talon Tech Co.,Ltd
