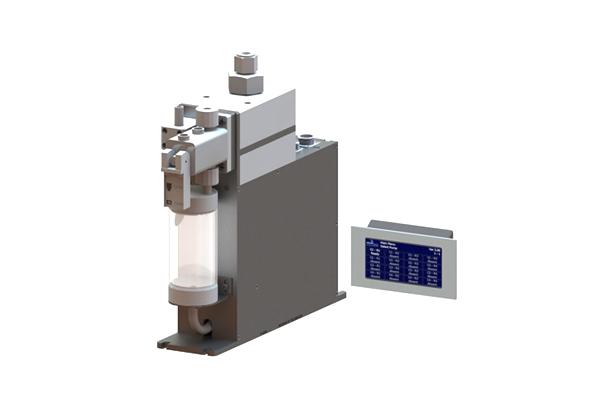

High Viscosity PR Pump
Model TP-60BA

- DC Servo motor pump for constant dispenses

- Separated Controller and Touch pad

- Touch Pad Can control up to 16 pumps

- Bubble trap for automatic bubble vents and PR charges

- Compact sized PR pump

- Bubble Reduction Function

- Edgeless Outer Type bellows and bubble trap technologies are applied for step dispenses

- Save Maintenance time
  · Easy Purge Function (bottle → buffer → nozzle)
  · Optimized buffer Tank

- Special Welding

- No Leak Point







Configuration







Specifications



Process	Description
Maximum Dispense Volume	1.0cc~10.0cc
Dispense/Reload Rate	0.3cc/sec~1.2cc/sec
Dispense Volume Resolution	0.05cc
Dispense Repeatability	≤±0.05(2.2cp, 23℃)
Viscosity	50cp~10,000cp



Electrical Specification	Description
Drive System	Dc Servo Motor
Power Source	Control Board : 24V/2A



Hardware	Description
Input Pulse vs Dispense Volume	800 pulse/1cc
Resist In/Out	3/8 Inch Teflon
Input Pulse vs Encoder Output Pulse	Full step-1:1
Weight	Touch Pad	0.64kg
	Pump	5.90kg
Dimension (W)x(D)x(H)mm	Touch Pad	140x44x88
	Pump	72x339x296

Remarks

1. The distance between the pump & the PR bottle must be less than 1.5meter

2. The filter installation may be possible under 200cP

3. In case of over 1.5meter & 200cP, Strongly recommended to discuss talon Tech Co.,Ltd







Characteristics
