Color PR Pump (CIS)
Model TP-52S

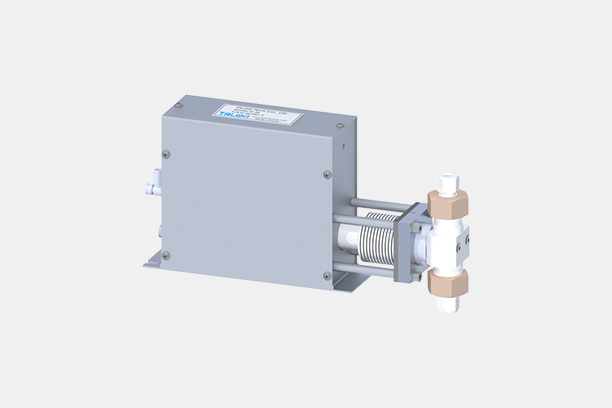

- DC Servo motor pump for constant dispenses

- Driving Method
  · Simple Diaphragm

- Save Maintenance Time
  · Easy to dis/assemble the diaphragm as an option

- Supply the additional diaphragm as an option

- Step Dispenses

- Separated controller and touch pad

- Touch pad can control up to 16 pumps

- 7 recipes can be applied

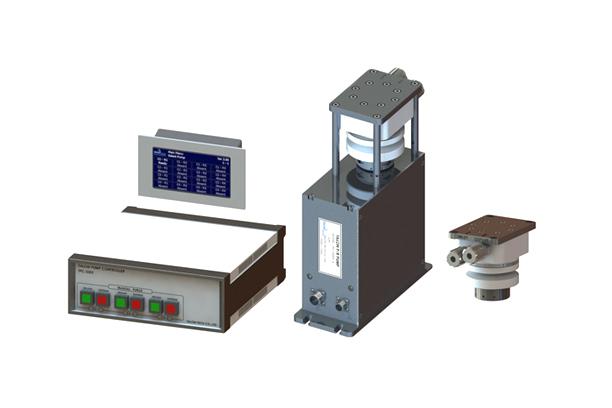

- Compact sized PR Pump and controller (1controller covers 3pumps)

- DC Servo motor pump for costant dispenses

- Driving Method
  · Simple Diaphragm

- Save Maintenance Time
  · Easy Purge Function (bottle → Pump → nozzle)







Configuration







Specificaitons

Process	TP-52S-07(7cc)	TP-52S-10(cc)
Dispense Volum Range	0.5cc~7.0cc	0.5cc~10.0cc
Dispense/Reload Rate	0.5cc/sec~4.0cc/sec	0.5cc/sec~4.0cc/sec
Dispense Volume Resolution	0.05cc	0.05cc
Dispense Repeatability	≤±0.05(2.2cp, 23℃)	≤±0.05(2.2cp, 23℃)
Viscosity	Max : 500cp	Max : 500cp



Utility	TP-52S-07(7cc)	TP-52S-10(cc)
Electric power	100VAC or 220VAC, 50/60Hz	100VAC or 220VAC, 50/60Hz
Main Air	0.1~0.3Mpa	0.1~0.3Mpa
Resist In/Out	1/4 Inch Teflon	1/4 Inch Teflon



Hardware		TP-52S-07(7cc)	TP-52S-10(cc)
Weight	Pump	3.30kg	3.35kg
	Controller	3.43kg	3.43kg
	Touch Pad	0.64kg	0.64kg
Dimension (W) x (L) x (H)mm	Pump	72x175x230	72x175x239
	Controller	250x261x94	250x261x94
	Touch pad	140x44x88	140x44x88







Characteristics
