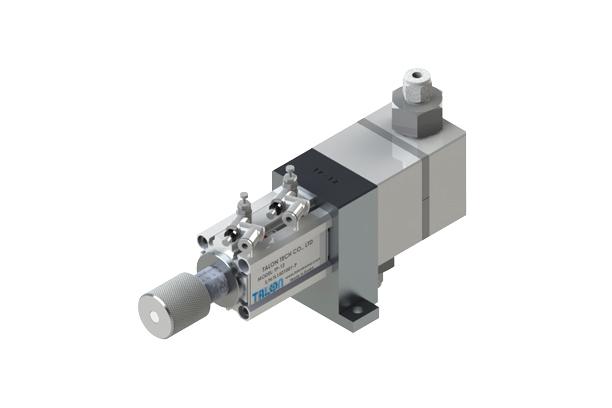

Air Cylinder Pump for Constant Dispenses
Model TP-12
- Outer type bellows
Specifications
| Process | Description |
| Dispense Volum Range | 0.8cc~10.0cc |
| Dispense / Reload Rate | 0.5cc/sec~4.0cc/sec |
| Dispense Volume Resolution | 0.05cc |
| Dispense Repetabillity | ≤ ±0.1(2.2cp, 23℃) |
| Viscosity | Max. 800cp |
| Electrical Specification | Description |
| Electric Power | 5~24VDC (Sensor Power Voltage) |
| Hardware | Description |
| Air Cylinder | SMC(OEM) |
| Resist In/Out | 1/4 Inch Teflon |
| Air | 0.2~0.5Mpa |
| Weight | 1.37kg |
| Dimension | 80(W) x 234(L) x 131(H) mm |
Remarks
1. The distance between the pump & the PR bottle must be less than 1.5meter.
2. The filter installation may be possible under 200cP.
3. In case of over 1.5meter&200cP, strongly recommended to discuss Talon Tech Co., Ltd
