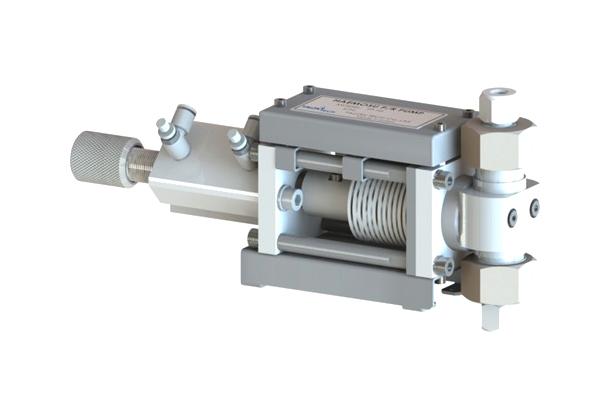

Air Cylinder Pump for Constant Dispenses
Model TP-10
- Inner type bellows
Specifications
| Process | Description |
| Dispense Volum Range | 0.7cc~4.0cc or 0.7cc~8.0cc |
| Dispense / Reload Rate | 0.5cc/sec~4.0cc/sec |
| Dispense Volume Resolution | 0.05cc |
| Dispense Repetabillity | ≤ ±0.1(2.2cp, 23℃) |
| Viscosity | Max. 150cp |
| Electrical Specification | Description |
| Electric Power | 5~24VDC (Sensor Voltage) |
| Hardware | Description |
| Air Cylinder | SMC(OEM) |
| Resist In/Out | 1/4 Inch Teflon |
| Air | 0.1~0.3Mpa |
| Weight | 0.87kg |
| Dimension | 50.9(W) x 232.3(L) x 110.3(H) mm |
