High Viscosity & High Capacity PR Pump
Model TP-70BS
- DC Servo motor pump for constant dispenses
- Separated controller and Touch Pad
- Touch Pad can control up to 16 pumps
- Bubble trap for automatic bubble vents and PR charges
- Compact sized Resist Pump and Controller (1controller covers 2pumps)
- Bubble Reduction Function
- Edgeless Outer Type Bellows and bubble trap technologies are applied for step dispenses
- Save Maintenance Time
· Easy Purge Function (bottle → buffer → nozzle)
· Optimized buffer Tank
- Special welding
- No Leak Point

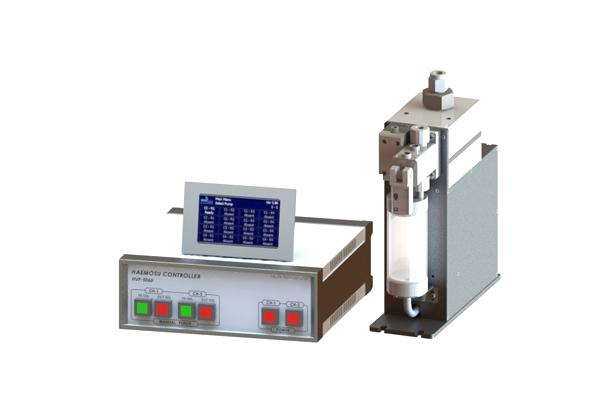

Configuration
Specifications
| Process | Description |
| Dispense Volume Range | 1.0cc~20cc |
| Dispense/Reload Rate | 0.5cc/sec~0.4cc/sec |
| Dispense Volume Resolution | 0.01cc |
| Dispense Repeatability | ≤±0.04(Polymide PIX/PIQ) |
| Viscosity | 50cp~20,000cp |
| Electrical Specification | Description |
| Electric Power | AC85~264V, 50/60Hz |
| Air | 0.1 ~ 0.3Mpa |
| Resist In/Out | 3/8 Inch Teflon |
| Hardware | Description | ||
| Weight | Controller / Touch Pad | 3.30kg / 0.64kg | |
| Pump | 6.65kg | ||
|
Dimension |
Controller / Touch Pad | 250x261x94 / 140x44x88 | |
| Pump | 87x299x306 | ||
Remarks
1. The distance between the pump & the PR bottle must be less than 1.5meter
2. The filter installation may be possible under 200cP
3. In case of over 1.5meter & 200cP, Strongly recommended to discuss talon Tech Co.,Ltd
Characteristics
