제품 상세 정보

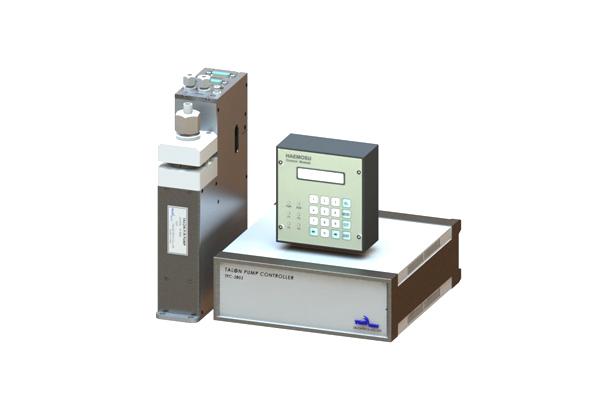

Stepping Motor Pump for Constant Dispenses
Model TP-30BS
- Separated Controller and Key Pad
- Bubble trap for automatic bubble vents and PR charges
- Compact sized Resist Pump and Controller (1Controller covers 3pumps)
- Bubble Reduction Function
- Outer type bellows and bubble trap technologies are applied for step dispenses
Configuration
Specifications
| Process | Description |
| Dispense Volum Range | 0.5cc~7.0cc |
| Dispense / Reloade Rate | 0.1cc/sec~7.0cc/sec |
| Dispense Volume Resoultion | 0.01cc |
| Dispense Repeatabillity | ≤±0.05(2.2cp, 23℃) |
| Viscosity | Max.50cp(With filter) |
| Utility | Description |
| Electric Power | 90V~240VAC, 50/60Hz |
| Air | 0.1~0.3Mpa |
| Resist In/Out | 1/4 Inch Teflon |
| Hardware | Description | |
| Weight | Controller / Key Pad | 3.43kg / 0.66kg |
| Pump | 3.76kg | |
|
Dimension |
Controller / Key pad | 250x261x94 / 124x57x134 |
| Pump | 60x190x307 | |
Characteristics
