Overview

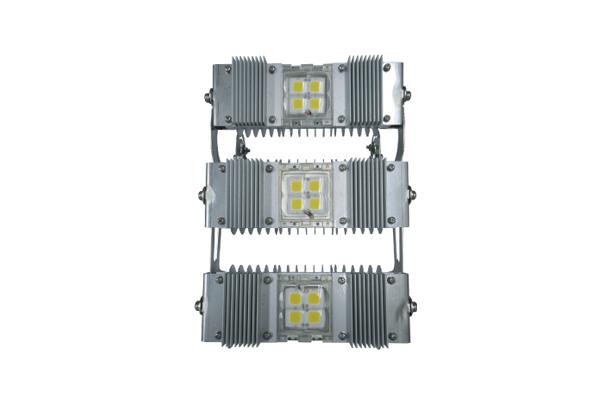

This third LED light device is the high efficiency LED fish gathering lamp. This LED light can be substitiuted existing the metal halide lamp to save up 80% of consumption of fuel for operation.
Installing LED fishing lamp which using approximatly 10% of ulluminating power as equivalent with metal hailde fishing lamp installed in the existing squid jigging fishing vessel to energy savings while achieving the same or over fishing effect.
Strong and long life in the marine environment, such as shock, vibration, depending on the timing automatic (controller) control the direction of light (shaded area) that can maximize the effect of the operation.
Features
- Fuel cost savings up to 80% than the existing metal hailde lamp
- Sailors welfare improvement (porblem resolved ultraviolet radiation accidents and ballast)
- Fishermen increased income
- Similar species and marine lighting technological spillover
Specification
| General |
| Rated voltage (input voltage, V) | DC 24V |
| Rated current (input current, A) | 2.2A |
| Rated output (W) | 50W |
| Total luminous flux (lm) | 4,331 lm |
| Light efficiency (Im / W) | 86 (lm / W) |
| Orientation angle | 110 |
| Color Temperature (K) | 5,700K |
| Reliability (CRI) | 80 |
| IP rating | IP67 |
| Operating environment | -20MC-40T |
| Size (mm) | Length 200mm, length 120mm, width 70mm |
| Weight (Kg) | 1.3Kg (including SMPS) |
| LED Average Life Time | Over 50.000 Hrs |
