Overview

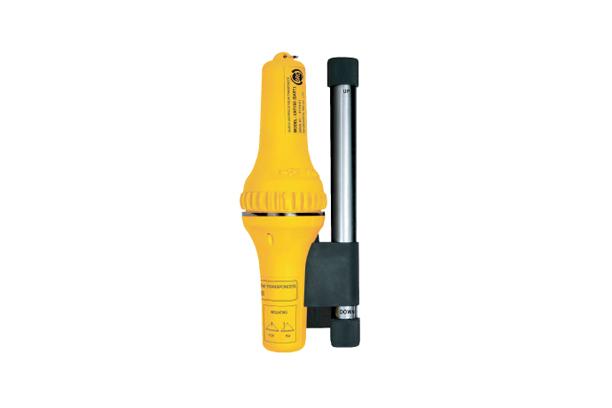

CRT100 is designed to comply with GMDSS requirement related with performance standards for sruvival craft radar transponder.
The fundamental function of the CRT100 is to indicate its position by producing range and bearing information on 9GHz radar screen of any nearby vessels and aricraft. CRT100 is certified from CCS, RS, and KG.
Features
- Ship or suvival craft applications
- Compact & lightweight
- Easy to fit and operate
- Built-in test function
- Buoyant
Specification
| General Characteristics |
| Temperature range | -20°C to +55°C |
| Storage temperature | -30°C to +70°C |
| Operating life | Up to 96 hours in stand-by mode and 8 hours in continuous operation |
| Outer diameter | 93mm (without mounting bracket) |
| Height | 325mm |
| WEIGHT | 760g |
| Technical Specifications |
| FREQUENCY | 9.2 - 9.5 GHz |
| Output power | 5W ± 2dB |
| Polarization | Horizontal |
| Horizontal | Omni directional 〈 ±2dB |
| Vertical | ±12.5° |
| Sweep rate | Forward 7.5us nominal ±1/^s |
| Return 0.4^s nominal ±0.1 jiis |
| Radiated power | > 400mW(26dBm) |
| Response delay | < 0.5/is nominal |
| Recovery time | < 10"s |
