Overview

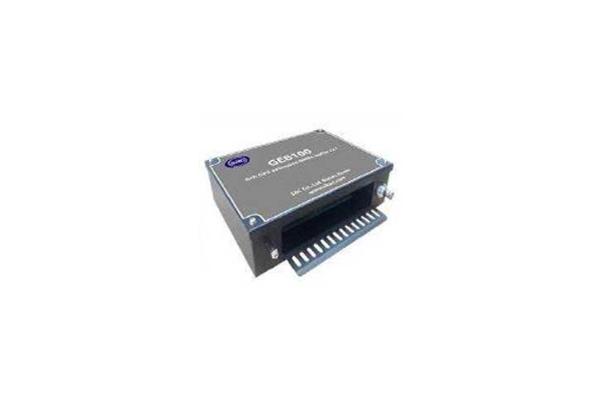

The GPS Extension Buffer 110 (GEB110) is a navigation aid for ship, which receives data from a GPS (Global Positioning System) that transmits signals such as latitude, longitude, altitude, speed and time and transmits it to navigation equipment and communication equipment As well as setting the communication speed of each GPS data received by each device, you can supply GPS data with flexibility regardless of any equipment. In addition, if additional equipment that already uses GPS is already installed and additional equipment that requires GPS data is added, you can divide the existing equipment data into several places and provide it according to the communication speed of each device.
Features
- The basic module can split up to 6 data.
- Communication speed can be set manually by simple switch operation
- The GEB110 uses DC power and operates stably at DC5V level even if unstable DC power supply is in the range of 10 ~ 36V.
(Built-in DC-DC Converter)
- Each port of the output can be set up in two different communication speeds
- The automatic setting of the input finds and sets the rate by itself
Specification
| General |
| Input Power | 10~24VDC(Appr. 200mA), Encourage 24Vdc, Electronic Fuse. (No replace required) |
| Temperature | Operating temperature -20~+80°C |
| Weight | Appr. 1.0Kg |
| Dimension | 200mm x 150mm x 50mm |
| Option |
| GPS Module | Suf4 GPS is select available |
| LCD Module | Optional LCD is select available |
| Real time longitude, latitude and time display |
| Operation mode |
| GPS Mode | Suf3 or Suf4 GPS Module mounting can receive the GPS data |
| Can be transmitted by different speed(baud rate) through 6ch port to the receive data |
| Can be changed to switch the baud rate setting |
| Input Mode | The GPS data can be input from the outside |
| Can be transmitted by different speed(baud rate) through 6ch port to the input data |
| Can be changed to switch the baud rate setting |
