Overview

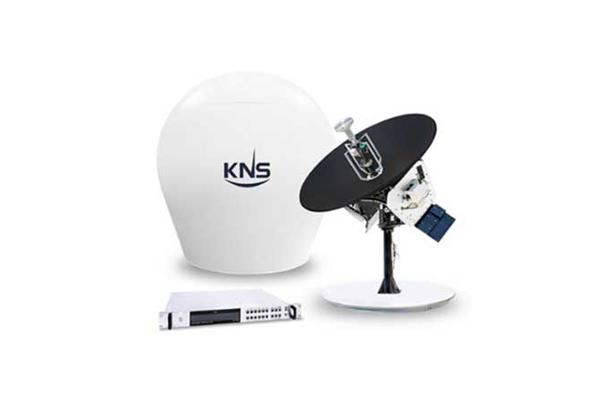

The Super Track Z-Series is the perfect solution for ships looking for broadband speeds at sea. Stay in touch with your networks via high speed access to the internet, email, multiple VoIP phones and more.
Features
- Automatic Satellite Search & Skew Control
- Brake System
- Pre-programmed Satellite Database
- CER & TTE Certified
- Unlimited Azimuth
- Accurate Signal Acquisition by KNS's Distinctive Algorithm
- Antenna Control Unit
Specification
| Above Deck |
| Dish Diameter | 75cm(40") |
| Antenna Dimension | 102cm(D) x 104cm(H) |
| Antenna Weight | 69 Kg |
| Radome Material | Honeycomb FRP |
| Frequency | TX : 13.75 ~ 14.5 GHz |
| RX : 10.75 ~ 12.75 GHz |
| Antenna Gain | TX : 39.1 dBi @ 14.25 GHz |
| RX : 37.5 dBi @ 11.75 GHz |
| G/T | 16.37 dB/K (in Radome) |
| @ 30deg, Elevation angle and 11.75GHz, Clear Sky |
| Operating Platform | 3 - Axis |
| LNB | Single PLL LNB / Universal LNB(optional) |
| BUC | 4W / 6W / 8W / 16W (optional) |
| Skew Control | Automatic |
| Elevation Angle | -10° to +100° |
| Azimuth Range | Unlimited |
| Cross Angle | +35° |
| Ship Motion | Roll : ±24.7° at 8 sec periods |
| Pitch : ±15° at 6 sec periods |
| Yaw : ±8° at 15 sec periods |
| Tracking Speed | More than 90° / sec |
| Vibration Damper | Rubber Damper Included |
| Temperature | -20°C to +55°C |
| Humdity | Up to 100% @40°C |
| Antenna Input Power | TX : 48V DC, 3.2A |
| RX : 48V DC, 4.18A |
| Below Deck |
| ACU Size | 19" Rack 1U size |
| Gyro Interface | NMEA 0183, Synchro, Step by Step |
| Input Power | 100 ~ 120V AC / 200 ~ 240V AC
50 / 60Hz, 8A / 4A |
| Output Power | TX : 48V DC, 3.2A |
| RX : 48V DC, 4.18A |
| External I/O | RS-232C, Mini-USB, Ethernet, Console |
| Packing |
| Size | 120 x 120 x 132 cm |
| Gross Weight | 142kg |
| Packed by | Wooden Crate |
| Certification / Qualification | - |
