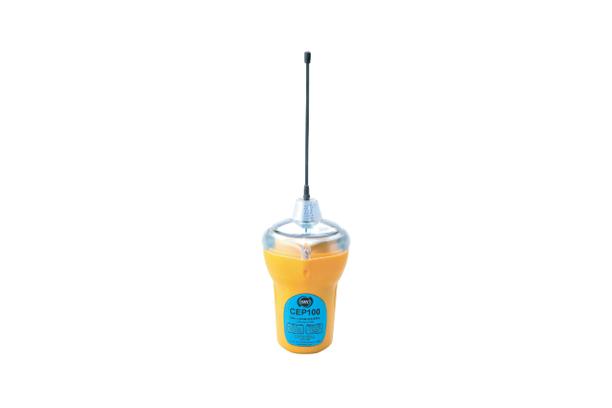

GPS 비상 위치 지시용 무선표지 설비
모델명
CEP100
시리즈
세계해사 조난시스템 장비
자료
-
구매정보
provider logo
(주)에스알씨

조난시스템 장비, 선박자동식별 장비, 통신장비 등

연락처
051-412-6197
이메일
master@oksrc.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매의 당사자가 아닙니다.
제조사
(주)에스알씨[바로가기]
제품 타입
기계
브랜드
-
SKU
122892
제품명
GPS 비상 위치 지시용 무선표지 설비
모델명
CEP100
사이즈
-
중량
-
제품 상세 정보

Overview

CEP100 is the next generation Search and Rescue(SAR) transmitter and 406MHz satellite EPIRB embedded GNSS GPS receiver. It fully comply with IMO SOLAS regulation and Gospas-Sarsat technical standard T.001.

CEP100 transmits distress alert signal including self position of under 50 meters accuracy using GEO satellite. In distress, the signal transferred to Rescue Coordination Centre(RCC) without delay through local User Terminal (LUT) so that SAR goes in quick action.

CEP100 is certified from CE MED, CCS, RS and KG


Features

- Highly improved Searching Area Accuracy
- Built in GPS Receiver
- Efficiency battery power consumpotion
- Non-hazardous batteries
- Easy User information programming
- GMDSS compliant
- Small and light Weight
- Fully enclosed housing
- 5-year battery shelf life


Specification

General
AntennaVertical Whip (199 mm)
BatteryLi/SOCI2(+10.8V) non hazardous battery
Auto ReleaseTerm of validity : 2 years
ActivationAutomatic and manual
Operating time48 hours (or more)
TemperatureOperating (-20°C +55°C)
Storage (-30 to +70°C)
Beacon Size400mm (Height with Antenna), 136mm (Diameter)
Weight0.85kg
Container Size177(W) x 150(H) x 420(L)
Strobe lightWhite LED (20 flash / min)
StandardCOSPAS-SARSAT T.001, IEC 61097-2, IEC 60945
CertificateCE(MED-MB-5001-10, CCS(FS09T00037), KG(SR0-CEP100)

406MHz Trasmitter
Frequency406.037 MHz ± 2dB
Output power5W ± 2dB
ModulationPhase modulation 1.1 ± 0.1 rad
Stability Short term≤ 2 x 10-9
Medium term≤ 109
Residual variation≤ 2 x 10-9
Bitrate400 bits/s
Message TypeLong Message

121.5 MHz TRANSMITTER
Frequency121.5 MHz ± 10 ppm
Output powerUp to 60 mW
ModulationSweep tone from max 1100 Hz to min 400Hz

GPS Receiver
TypeBuilt-in Ceramic dielectric patch antenna
Center FrequencyL1-1575.42MHz
Satellites Tracked12
Position acquisition timeLess than 3 min at start-up
Position updateevery 2 min
