product Image
GMDSS 테스트박스
모델명
-
자료
-
구매정보
provider logo
(주)에스알씨

조난시스템 장비, 선박자동식별 장비, 통신장비 등

연락처
051-412-6197
이메일
master@oksrc.com
상품정보에 문제가 있나요?
정보수정 / 삭제요청
코머신은 제품 판매자가 아닙니다.법적고지 및 안내
제조사
(주)에스알씨[바로가기]
제품 타입
기계
브랜드
-
SKU
122916
제품명
GMDSS 테스트박스
모델명
-
사이즈
-
중량
-
제품 상세 정보

Overview

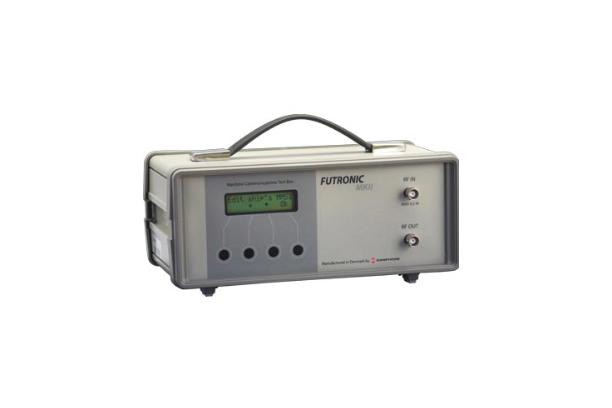

The Futronic MKII GMDSS-AIS-SART is a complete all-in-one test for IMO/SOLAS mandated radio surveys. It serves classification authorities, equipment manufacturers, radio inspectors and maritime service providers worldwide as the preferred test equipment to carry out statutory maritime radio surveys and inspections.


Features

- VHF Radios
- NAVTEX Receivers
- Search and Rescue Transponders
- MF/HF Radios
- AIS Transponders


Specification

General
Power supply10-28VDC
Battery timeUp to 8 hours
Operating temperature0 to +50ºC
Storage temperature-30 to +60ºC
Dimension103x258x140 mm
Weight2.8 kg
WarrantyFutronic MKll comes with a two-year warranty (subejct to first calibration).
Software updates includedFutronic MKll is continually updated with the latest software (subject to calibration).
Calibration ScheduleCalibration required every second year though the first calibration after one year.
GeneralFUTRONIC MKII MODELS
GMDSSGMDSS-AISGMDSS-AIS-SART
NSN: 6625-22-631-4263
VHF/DSC radio
MF-HF/DSC radio
NAVTEX receiver
EPIRB & PLB
AIS transponder-
AIS AtoN-
AIS-SART & MoB device-
Radar SART--
STANDARD ACCESSORIES INCLUDEDOPTIONAL ACCESSORIES
1 x Power adaptor 100-240VAC / 12VDC1 x Telescopic antenna for VHF/AISWaterproof case
1 x Car power adaptor1 x Wire antenna for MF/HF/NAVTEXRF amplifier
1 x USB cable for connection to PC2 x UHF plugs to BNC socket adaptorSet of attenuators (10-20-40dB)
1 x Coax cable, 25 cm, with BNC1 x UHF socket to BNC socket adaptorPilot plug cable
2 x Coax cables, 150 cm, with BNC1 x BNC socket to BNC socket adaptor-
1 x Coax cable, 500 cm, with BNC1 x User manual in English-
1 x AIS signal combiner / dummy load1 x Calibration certificate-
1 x Audio reference / AF generator--
