Overview

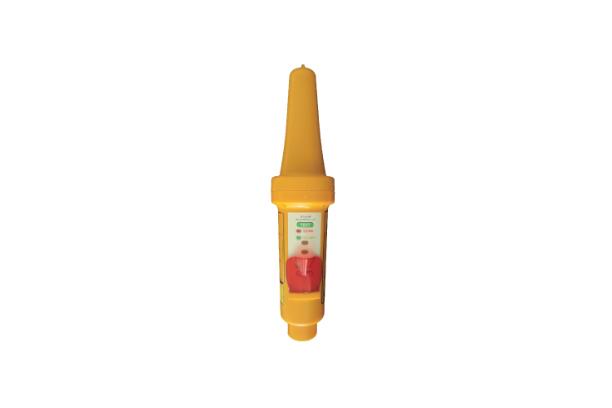

AST100 is a search and rescue location information transmitting device. (transceiver VHF band to provide the user’s location in an emergency)
AIS-SART is equipped with the mandatory requirements to ship on October 2007 the IMO, the relevant technical standards (IMO resolution MSC.246 (83)), and regulations for the Safety of Life at Sea Convention (SOLAS).
The basic function of the AIS-SART by sending a distress signal with his position on the adjacent vessels and land-based AIS (Automatic Identification System) device to deliver a state of emergency.
Features
- Innovative AIS Technology
- Applicable for leisure and fishing boat
- Visual indication of test and operation
- Waterproof to 10M depth
- Buoyant / Floats
- Easy to assemble and carry
- Rugged and compact
- Minimum operation time up to 96h
Specification
| General |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -30°C to +70°C |
| Battery Type | Lithium battery (U/SOCI2) |
| Operating Life | 96hrs. minimum |
| Waterproof | 5 min at 10M depth |
| Weight | 0.274 kg (without Mounting Pole) |
| Height | 315 mm |
| Width | 74 mm |
| Mounting Pole length | 1 m |
| Standard | IEC 61097-14,1 EC 60945, ITU-R M.1317 |
| AIS Tramsmitter |
| Operating Frequency | 161.975MHz, 162.025MHz |
| Power Output | 1 watt RP |
| AIS message type | Message no. 1J 4 |
| Modulation | GMSK |
| VHF Antenna | Internal (Helical type) |
| GPS Receiver |
| Receiver type | 50 channel, GPS L1 C/A code |
| Accuracy Position | 2.5m CEP, SBAS:2.0m CEP |
| Tracking Sensitivity | -162dBm |
