Overview

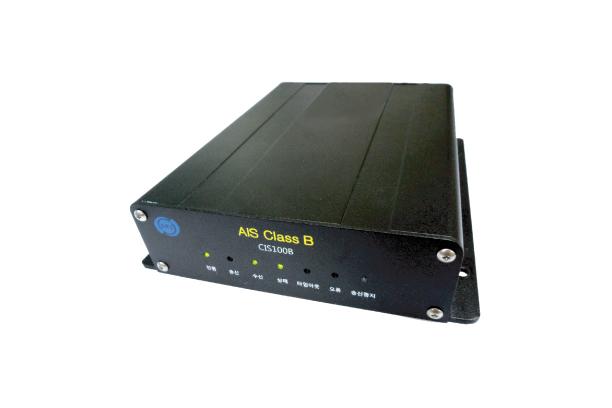

CIS100B is AIS class-B transponder that receives AIS data from vessels and transmits own ship’s information to the vessels around over VHF channels utilizing highly sophisticated digital signal processing and software algorithms so that prevents collision avoidance and contributes safety navigation.
CIS100B is fitted to leisure craft and fishing vessels, this can be displayed on chart plotters and charting software for lap-tops and PDAs, to show their ID and course on the plotter display.
Features
- AIS Message collision protection function with CSTDMA
- AIS transceiver of 161.975MHz and 162.025MHz channel
- Embedded satellite DGPS(WAAS, MSAS, EGNOS) function
- Possible to transmit SRM
- External VHF and GPS antenna used
- RS232 and RS422 standard port used
- 7-LED indicator of AIS status at the front panel
Specification
| General |
| Frequency Range | 156.025MHz ~ 162.025MHz |
| Field Band | 25kHz, (Channel Step : 25kHz) |
| Modulation Method | 25kHz GMSK (AIS, TX and RX), 25kHz FSK (DSC, RX only) |
| Transmission Speed | 9600bps (GMSK), 1200bps (FSK) |
| Power Consumption | +12Vdc ~ +30Vdc |
| Operating Temperature | -15t |
| Storage Temperature | -25°C to +75°C |
| Size | 145(W)mmx42(H)mmxl95(D)mm |
| Weight | 750g |
| Transmitter |
| Output Strength | 33dBm 土 1.5dB |
| Receiver |
| Reception strength | -107dBm |
| GPS Receiver |
| Reception Frequency | 1575.42MHz |
| Position Accuracy | 10m (HD0P) |
