Overview

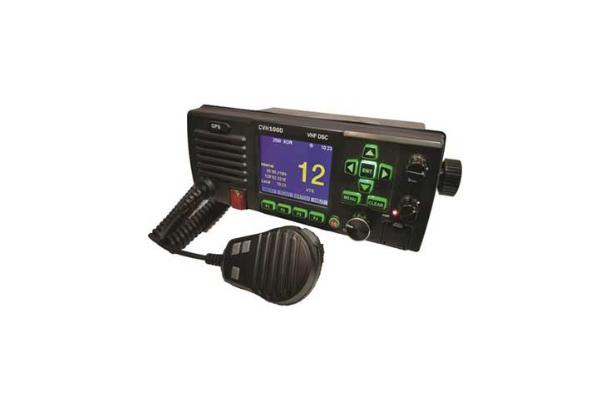

The CVH100D is a marine VHF & DSC radiotelephone device that provides maritime mobile services that provide ship-to-ship and ship-to-land intermodal wireless telephony, DSC (Digital Selective Calling), and Polling (location reporting using DSC) It is a device designed and developed for use. And meets environmental requirements and electromagnetic compatibility requirements among IEC 60945 standards of IEC (International Electrotechnical Commission), a technical standard of marine communication equipment required by IMO (International Maritime Organization) as a maritime communication device
Features
- Built-in GPS antenna
- Easy operation with large color LCD screen (3.2 inch)
- Dedicated AIS receiver can be installed (OPTION)
- Built-in AIS DATA display and save function
- Enables voice and DSC reception with one antenna
Specification
| General |
| Frequency range | Transmission Frequency: 156.025 ~ 157.425 MHz, Receive Frequency: 156.050 ~ 163.275 MHz |
| Number of Channels | ITU 57 channels, USA 49 channels, CAN 57 channels, KOR 57 channels, WX (weather) 10 channels |
| Communication Method | SIMPLEX and SEMIDUPLEX |
| Propagation System | Voice : G3E, Data (DSC): G2B |
| Antenna Impedance | 50Ω |
| Input Power | DC + 12V to + 15V (+ 13.5V rated) |
| External Interface | GPS(RS422, 4,800bps), AIS(RS422, 38,400bps) |
| Data Output | RS232 audio output |
