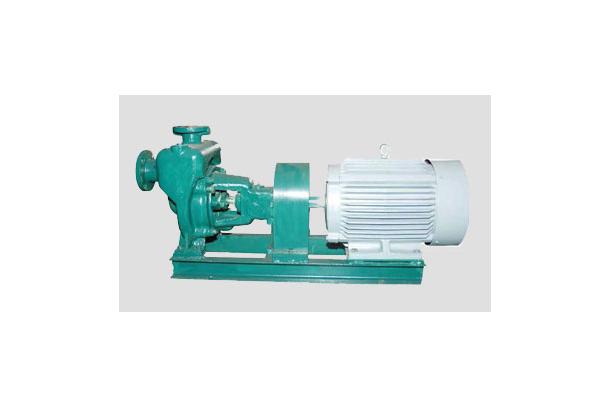

HCS Horizontal centrifugal pump, single stage & single suction - self priming

Construction

This pump is of the horizontal single stage & single suction centrifugal type.
Its rotating element is connected to an electric motor shaft through a flexible coupling.

Application

- Fresh water pump
- Sanitary pump
- Bilge & G.S. pump
- Other

Principal particulars

MODEL	HCS-40	HCS-50	HCS-65A	HCS-65B	HCS-80A	HCS-80B	HCS-100
Rotation	Clockwise when viewed from driver end
Suction bore[mm]	40	50	65	65	80	80	100
Discharge bore[mm]	32	40	50	50	65	65	80
Stuffing box seal	Gland packing or Mechanical seal
Weight[kg]	Refer to the outline drawing

Performance selection charts

Outline Dimension

MODEL	BORE		DIMENSIONS [mm]													MOTOR POWER [kw]	PUMP WEIGHT [kg]
MODEL	SUC.	DIS.	A	B	C	D	E	H	I	K	L	M	N	P	X	MOTOR POWER [kw]	PUMP WEIGHT [kg]	Z
HCS-40A	40	32	150	355	327	100	207	427	130	450	710	255	15	606	215	290	1.5	81
																	2.2	90
																	3.7	97
HCS-50	50	40	178	355	365	158	265	523	130	450	710	280	15	533	248	315	1.5	100
									130	450	710				248		2.2	108
									155	500	810				268		5.5	138
HCS-65A	65	50	168	355	355	168	262	523	130	450	710	280	15	523	258	315	2.2	108
			168		355	168		523	130	450	710	280	15	523	258	315	3.7	115
			188		390	158		548	180	600	960	290	19	543	308	335	11	197
HCS-65B	65	50	188	355	415	155	313	570	130	500	760	315	15	543	243	350	3.7	135
									155	500	810				268		5.5	142
									155	600	910				268		7.5	150
HCS-80A	80	65	205	470	470	200	337	670	180	600	960	355	19	675	295	410	7.5	140
HCS-80A	80	65	205	470	470	200	337	670	130	400	1060	355	19	675	315	410	11	147
HCS-80B	80	65	215	470	520	200	384	720	130	400	1060	395	19	685	255	440	11	205
HCS-80B	80	65	215	470	520	200	384	720	130	400	1060	395	19	685	325	440	15	250
HCS-100	100	80	225	470	495	205	358	700	130	400	1060	395	19	695	265	440	11	140
HCS-100	100	80	225	470	495	205	358	700	130	400	1060	395	19	695	265	440	15	147

Standard Sectional drawing

PART No.	NAME OF PART	MATERIAL		REQ.No. FOR 1 PUMP
PART No.	NAME OF PART	NAME	KS	REQ.No. FOR 1 PUMP
102	VOLUTE CASING	CAST IRON	GC200	1
106	CASTING RING	BRONZE	BC6	2
201	CASING COVER	CAST IRON	GV200	1
208	SUCTION BRANCH	CAST IRON	GV200	1
208	NON RETURN VALVE	CAST IRON	GV200	1
301	IMPELLER	BRONZE	BC6	1
401	SHAFT	STAINLESS STEEL	STS304	1
402	IMPELLER KEY	STAINLESS STEEL	STS304	1
403	COUPLING KEY	CARBON STEEL	SM45C	1
405A	O-RING	RUBBER		1
405B	O-RING	RUBBER		1
410	SLEEVE	BEARING STEEL	STS304	1
411A	BALL BEARING	BEARING STEEL		1
411B	BALL BEARING	BEARING STEEL		1
413	IMPELLER WASHER	STAINLESS STEEL	STS304	1
414	IMPELLER NUT	STAINLESS STEEL	STS304	1
421	SPRING LOCK WASHER	STAINLESS STEEL	STS304	1
422	THROWER	RUBBER		1
501	BEARING CASE	CAST IRON	GC200	2
502	BEARRING COVER	CAST IRON	GC200	1
506	SUPPORT	MILD STEEL	SS400	1
508	WAVE SPRING	SPRING STEEL	SPS6	1
701	GRAND PACKING	SEMI METALLIC		1 set
702	LANTERN RING	BRONZE	BD6	1 set
703	GRAND	BRONZE	BD6	1 set
801	PUMP COUPLING	CAST IRON	GC200	1
802	MOTOR COUPLING	CAST IRON	GC200	1
803	COUPLING RING	RUBBER		1 set
806	COUPLING,NUT & WASHER	MILD STEEL	SS400	1 set
