Horizontal centrifugal pump

모델명

HCD-50

시리즈

HORIZONTAL PUMP

전체보기시리즈 전체보기

자료

구매정보

(주)경양엔지니어링

선박용 펌프

연락처

051-418-6628

이메일

kypump@kypump.co.kr

상품정보에 문제가 있나요?

정보수정 / 삭제요청

코머신은 제품 판매자가 아닙니다.법적고지 및 안내

제조사

(주)경양엔지니어링[바로가기]

제품 타입

기계

브랜드

SKU

122840

제품명

Horizontal centrifugal pump

모델명

HCD-50, HCD-65A, HCD-65V, HCD-80A, HCD-80B, HCD-100

사이즈

중량

제품 상세 정보

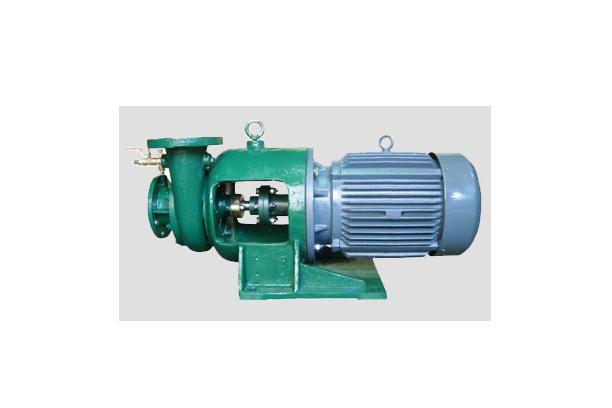

HCD Horizontal centrifugal pump, single stage & single suction - closed coupling

Construction

This pump is of the horizontal single stage & single suction centrifugal type.
Its rotating element is connected to an electric motor shaft through a rigid coupling.

Application

- Cooling fresh water pump
- Cooling sea water pump
- Sea water service pump
- Hot water circ. pump
- Other

Principal particulars

MODEL	HCD-50	HCD-65A	HCD-65V	HCD-80A	HCD-80B	HCD-100
Rotation	Clockwise when viewed from driver end
Suction bore[mm]	50	65	65	80	80	100
Discharge bore[mm]	50	65	65	80	80	100
Stuffing box seal	Gland packing or Mechanical seal
Weight[kg]	Refer to the outline drawing

Performance selection charts

Outline Dimension

MODEL	BORE		DIMENSIONS [mm]													MOTOR POWER [kw]	PUMP WEIGHT [kg]
MODEL	SUC.	DIS.	A	B	C	D	H	I	K	L	M	N	P	X	Z	MOTOR POWER [kw]	PUMP WEIGHT [kg]
HCD-50	50	50	100	215	190	158	370	50	150	250	220	15	315	250	280	1.5	58
				225	190		370		180	280	220		325		280	2.2	58
				245	210		390		200	300	270		345		330	5.5	107
HCD-65A	65	65	100	227	190	158	370	50	150	250	220	15	315	250	280	1.5	58
				227	190		370		180	280	220		325		280	2.2	58
				247	210		390		200	300	270		345		330	5.5	107
HCD-65B	65	65	100	227	190	225	415	50	180	280	220	15	327	207	280	3.7	92
				247	210		435		200	300	270		347		330	5.5	122
				247	210		435		200	300	270		347		330	7.5	125
HCD-80A	80	80	100	232	190	225	415	50	180	280	220	15	332	212	280	1.5	58
				252	210		435		200	300	270		352		330	3.7	97
				252	210		435		200	300	270		352		330	5.5	127
HCD-80B	80	80	100	252	250	250	500	50	200	300	270	15	352	212	350	7.5	132
HCD-80B	80	80	100	282	250	250	500	50	200	300	270	15	382	212	350	11	189
HCD-100	100	100	125	253	250	780	530	50	200	300	270	19	315	238	350	7.5	156
				283									408			11	208
				283									408			15	215

Standard Sectional drawing

PART No.	NAME OF PART	MATERIAL		REQ.No. FOR 1 PUMP
PART No.	NAME OF PART	NAME	KS	REQ.No. FOR 1 PUMP
101	CASING	CAST IRON	GC200	1
106	CASTING RING	BRONZE	BC6	2
112	FRAME	CAST IRON	GC200	1
114	NECK BUSH	BRONZE	BC6	1
116	O-RING	RUBBER		1
201	CASING COVER	CAST IRON	GV200	1
301	IMPELLER	BRONZE	BC6	1
401	SHAFT	STAINLESS STEEL	STS304	1
402	IMPELLER KEY	STAINLESS STEEL	STS304	1
403	COUPLING KEY	CARBON STEEL	SM45C	1
404	SLEEVE	BEARING STEEL	STS304	1
413	IMPELLER WASHER	STAINLESS STEEL	STS304	1
414	IMPELLER NUT	STAINLESS STEEL	STS304	1
601	MECHANICAL SEAL COVER	BRONZE	BC6	1
602	MECHANICAL SEAL			1
701	GRAND PACKING	SEMI METALLIC		1 set
703	GRAND	BRONZE	BD6	1 set
801	PUMP COUPLING	CAST IRON	GC200	1
802	MOTOR COUPLING	CAST IRON	GC200	1
804	COUPLING,NUT & WASHER	MILD STEEL	SS400	1 set
