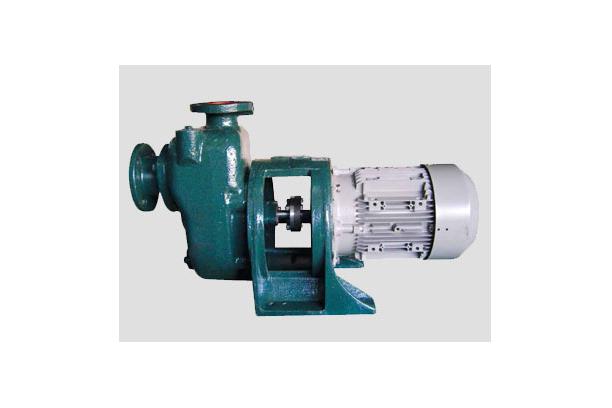

HSD Horizontal centrifugal pump, single stage & single suction - self priming, closed coupling

Construction

This pump is of the horizontal single stage & single suction centrifugal type.
Its rotating element is connected to an electric motor shaft through a rigid coupling

Application

- Fire & G.S. pump
- Bilge & Ballast pump
- Fresh water pump
- Sanitary pump
- Other

Principal particulars

MODEL	HSD-50	HSD-65A	HSD-65V	HSD-80A	HSD-80B	HSD-100
Rotation	Clockwise when viewed from driver end
Suction bore[mm]	50	65	65	80	80	100
Discharge bore[mm]	50	65	65	80	80	100
Stuffing box seal	Gland packing or Mechanical seal
Weight[kg]	Refer to the outline drawing

Performance selection charts

Outline Dimension

MODEL	BORE		DIMENSIONS [mm]														MOTOR POWER [kw]	PUMP WEIGHT [kg]
MODEL	SUC.	DIS.	A	B	C	D	E	H	I	K	L	M	N	P	X	Z	MOTOR POWER [kw]	PUMP WEIGHT [kg]
HSD-50	50	50	150	240	315	140	190	455	50	150	250	220	15	390	280	280	1.5	87
				250	315		190	455		180	280	220		400		280	2.2	87
				270	335		210	475		200	300	270		420		330	5.5	136
HSD-65A	65	65	150	260	315	140	190	455	50	180	280	220	15	410	290	280	2.2	88
																	3.7	107
																	7.5	141
				280	335		210	475		200	300	270		430		330	5.5	107
HSD-65B	65	65	150	260	330	150	190	480	50	180	280	220	15	410	290	280	3.7	124
				280	350		190	500		200	300	270		430		330	5.5	154
				280	350		210	500		200	300	270		430		330	7.5	158
HSD-80A	80	80	165	270	315	165	190	480	50	180	280	220	15	435	315	280	3.7	130
HSD-80B	80	80	165	290	400	200	250	600	50	200	300	270	19	455	315	350	5.5	188
				290										455			7.5	192
				320										485			11	244
HSD-100	100	100	185	290	400	200	250	600	50	200	300	270	19	475	335	350	7.5	196
				320										405			11	247
				320										405			15	254

Standard Sectional drawing

PART No.	NAME OF PART	MATERIAL		REQ.No. FOR 1 PUMP
PART No.	NAME OF PART	NAME	KS	REQ.No. FOR 1 PUMP
101	CASING	CAST IRON	GC200	1
106	CASTING RING	BRONZE	BC6	2
112	FRAME	CAST IRON	GC200	1
114	NECK BUSH	BRONZE	BC6	1
201	CASING COVER	CAST IRON	GV200	1
208	SUCTION BRANCH	CAST IRON	GV200
210	NON RETURN VALVE	CAST IRON	GV200
301	IMPELLER	BRONZE	BC6	1
401	SHAFT	STAINLESS STEEL	STS304	1
402	IMPELLER KEY	STAINLESS STEEL	STS304	1
413	IMPELLER WASHER	STAINLESS STEEL	STS304	1
414	IMPELLER NUT	STAINLESS STEEL	STS304	1
421	SPRING LOCK WASHER	STAINLESS STEEL	STS304
601	MECHANICAL SEAL COVER	BRONZE	BC6	1
602	MECHANICAL SEAL			1 set
701	GRAND PACKING	SEMI METALLIC		1 set
703	GRAND	BRONZE	BD6	1
802	MOTOR COUPLING	CAST IRON	GC200	1
804	COUPLING,NUT & WASHER	MILD STEEL	SS400	1 set
