제품 상세 정보

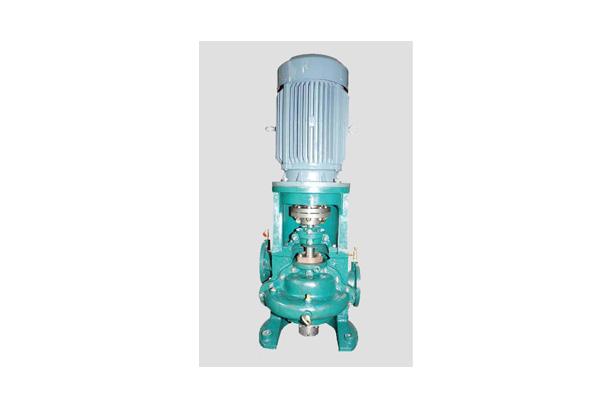

VSL Vertical centrifugal pump, single stage & single suction

Construction

This pump is of the vertical single stage & single suction centrifugal type.
Its rotating element is connected to an electric motor shaft through a flexible coupling.
The casing of this series is vertically split type

Application

- Cooling S.W. pump (MAIN/AUX.)
- Cooling F.W. pump (MAIN/AUX.)
- Jacket C.F.W. pump
- Other

Principal particulars

MODEL	VSL-100	VSL-125	VSL-150
Rotation	Clockwise when viewed from driver end
Suction bore[mm]	100	125	150
Discharge bore[mm]	100	125	150
Stuffing box seal	Gland packing or Mechanical seal
Weight[kg]	Refer to the outline drawing

Perfomance selection charts

Outline Dimension

MODEL	BORE		DIMENSIONS [mm]														MOTOR POWER [kw]	PUMP WEIGHT [kg]
MODEL	SUC.	DIS.	A	B	C	E	F	H	G	J	L	M	N	R1	R2	S	MOTOR POWER [kw]	PUMP WEIGHT [kg]
VSL-100	100	100	280	205	216	216	216	665	55	250	175	280	260	145	325	24	5.5~11	205
VSL-125	125	125	390	285	216	216	216	800	55	250	195	300	280	145	325	24	7.5~19	230
VSL-150	150	150	417	295	216	216	216	810	55	250	200	320	300	145	325	24	11~26	260

Standard Sectional drawing

PART No.	NAME OF PART	MATERIAL		REQ.No. FOR 1 PUMP
PART No.	NAME OF PART	NAME	KS	REQ.No. FOR 1 PUMP
101	CASING	*(on BUYER'S request)	*	1
105	END COVER	CAST IRON	GC200	1
107	MOUTH RING	BRONZE	BC6	2
111	PUMP BED	CAST IRON	GC200	1
112	MOTOL FRAME	CAST IRON	GC200	1
114	NECH BUSH	BRONZE	BC6	1
201	CASING COVER	*(on BUYER’S request)	*	1
202	LINE BEARING	CARBON		1
301	IMPELLER	*(on BUYER’S request)	*	1
401	SHAFT	STAINLESS STEEL	STS304	1
402	IMPELLER KEY	STAINLESS STEEL	STS304	1
403	COUPLING KEY	CARBON STEEL	SM45C	1
404	No.1 SLEEVE	STAINLESS STEEL	STS304	1
406	No.2 SLEEVE	STAINLESS STEEL	STS304	1
408	BEARING NUT	MILD STEEL	SS41	1
409	BEARING WASHER	MILD STEEL	SS41	1
411	BALL BEARING	BEARING STEEL		1 set
414	IMPELLER NUT	STANLESS STEEL	STS304	2
501	BEARING CASE	CAST IRON	GC200	1
502	BEARING COVER	CAST IRON	GC200	1
504A	FELT RING	FELT		1
504B	FELT RING	FELT		1
601	MECHANICAL SEAL COVER	BRONZE	BC6	1
602	MECHANICAL SEAL			1 set
701	GRAND PACKING	SEMI METALLINC		1 set
702	LANTERN RING	BRONZE	BC6	1
703	GRAND	BRONZE	BC6	1
801	PUMP COUPLING	CAST IRON	GC200	1
802	MOTOR COUPLING	CAST IRON	GC200	1
803	COUPLING RING	RUBBER	RUBBER	1
806	SHAFT BOLT & WASHER	MILD STEEL	SS400	1
