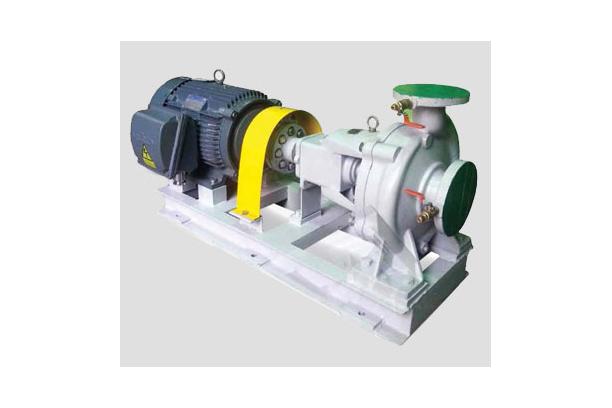

Horizontal centrifugal pump

모델명

HCC-40A

시리즈

HORIZONTAL PUMP

전체보기시리즈 전체보기

자료

구매정보

(주)경양엔지니어링

선박용 펌프

연락처

051-418-6628

이메일

kypump@kypump.co.kr

상품정보에 문제가 있나요?

정보수정 / 삭제요청

코머신은 제품 판매자가 아닙니다.법적고지 및 안내

제조사

(주)경양엔지니어링[바로가기]

제품 타입

기계

브랜드

SKU

122838

제품명

Horizontal centrifugal pump

모델명

HCC-40A, HCC-40B, HCC-50A, HCC-50B, HCC65A, HCC65B, HCC80A, HCC-80B

사이즈

중량

제품 상세 정보

HCC Horizontal centrifugal pump, single stage & single suction

Construction

This pump is of the horizontal two stage & single suction centrifugal type.
Its rotating element is connected to an electric motor shaft through a flexible coupling.

Application

- Cooling fresh water pump
- Cooling sea water pump
- Sea water pump
- Hot water circ. pump
- Other

Principal particulars

MODEL	HCC-40A	HCC-40B	HCC-50A	HCC-50B	HCC-65A	HCC-65B	HCC-80A	HCC-80B
Rotation	Clockwise when viewed from driver end
Suction bore[mm]	40	40	50	50	65	65	80	80
Discharge bore[mm]	32	32	40	40	50	50	65	65
Stuffing box seal	Gland packing or Mechanical seal
Weight[kg]	Refer to the outline drawing

Performance selection charts

Outline Dimension

MODEL	BORE		DIMENSIONS [mm]														MOTOR POWER [kw]	PUMP WEIGHT [kg]
MODEL	SUC.	DIS.	A	B	C	D	E	H	I	K	L	M	N	P	X	Z	MOTOR POWER [kw]	PUMP WEIGHT [kg]
HCC-40A	40	32	80	360	227	160	207	387	130	450	710	255	15	440	125	290	0.75	67
															125		1.5	77
															145		2.2	85
															155		3.7	92
HCC-40B	40	32	80	360	225	180	260	435	155	500	810	280	15	440	170	315	0.75	76
																	1.5	86
																	5.5	123
																	7.5	138
					280			460	180	600	960	290			195	335	11	173
HCC-50A	50	40	100	360	225	180	268	435	130	450	710	280	15	460	165	315	1.5	90
						180		435	130	450	710				175		2.2	98
						175		430	155	500	810				190		7.5	143
					280	180		460	180	600	960	290	19		215	335	11	178
					280	180		460	180	600	960	290	19		215	335	15	206
HCC-50B	50	40	100	360	275	225	340	500	130	500	760	315	15	460	152	350	2.2	122
HCC-50B	50	40	100	360	275	225	340	500	130	500	760	315	15	460	152	350	3.7	129
HCC-65A	65	50	100	360	225		285	455	130	450	710	280	15	460	175	315	2.2	105
					225			455	130	450	710	280			175	315	3.7	112
					280	200		480	180	500	810	290			215	335	15	220
					280	180		500	180	600	960	350	19		215	395	18.5	245
					280	180		500	205	600	960	350	19		240	395	22	260
HCC-65B	65	50	100	360	275	225	340	500	130	500	760	315	15	460	152	350	5.5	130
HCC-65B	65	50	100	360	275	225	340	500	155	500	810	315	15	460	182	350	7.5	147
HCC-80A	80	65	100	360	275	225	340	500	130	500	760	315	15	460	152	350	3.7	120
HCC-80A	80	65	100	360	275	225	340	500	155	500	810	315	15	460	182	350	5.5	137
HCC-80B	80	65	100	360	320	250	364	570	180	600	960	365	19	570	185	410	7.5	180
HCC-80B	80	65	100	360	320	250	364	570	130	400	1150	365	19	570	135	410	11	218

Standard Sectional drawing

PART No.	NAME OF PART	MATERIAL		REQ.No. FOR 1 PUMP
PART No.	NAME OF PART	NAME	KS	REQ.No. FOR 1 PUMP
102	VOLUTE CASING	CAST IRON	GC200	1
106	CASTING RING	BRONZE	BC6	2
115A	GASKET	OIL PAPER		1
115A	GASKET	NON-ASBESTOS		1
210	CASING COVER	CAST IRON	GV200	1
310	IMPELLER	BRONZE	BC6	1
401	SHAFT	STAINLESS STEEL	STS304	1
402	IMPELLER KEY	STAINLESS STEEL	STS304	1
403	COUPLING KEY	CARBON STEEL	SM45C	1
405A	O-RING	RUBBER		1
405B	O-RING	RUBBER		1
411A	BALL BEARING	BEARING STEEL		1
411B	BALL BEARING	BEARING STEEL		1
413	IMPELLER WASHER	STAINLESS STEEL	STS304	1
414	IMPELLER NUT	STAINLESS STEEL	STS304	1
421	SPRING LOCK WASHER	STAINLESS STEEL	STS304	1
422	THROWER	RUBBER		1
501	BEARING CASE	CAST IRON	GC200	2
502	BEARRING COVER	CAST IRON	GC200	1
505A	OIL SEAL	RUBBER		1
505B	OIL SEAL	RUBBER		1
506	SUPPORT	MILD STEEL	SS400	1
508	WAVE SPRING	SPRING STEEL	SPS6	1
509	OIL SIGHT GAUGE	PLASTIC		1
510	AIR RELEASE FILTER	PLASTIC		1
601	SEAL COVER	BRONZE	BC6	1
602	MECHANICAL SEAL			1 set
701	GRAND PACKING	SEMI METALLIC		1 set
801	PUMP COUPLING	CAST IRON	GC200	1
802	MOTOR COUPLING	CAST IRON	GC200	1
803	COUPLING RING	RUBBER		1 set
804	COUPLING,NUT & WASHER	MILD STEEL	SS400	1 set
