제품 상세 정보

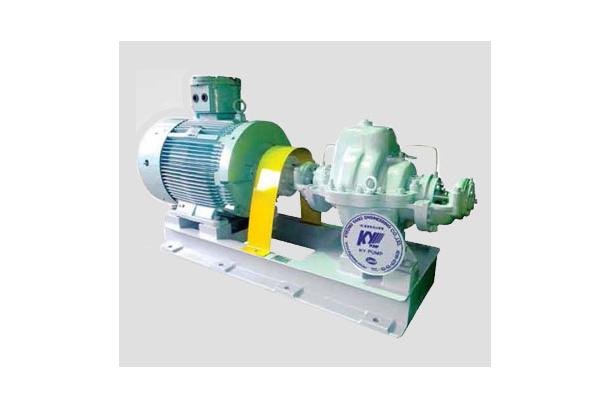

HCH Horizontal centrifugal pump, two stage & single suction

Construction

This pump is of the horizontal two stage & single suction centrifugal type.
Its rotating element is connected to an electric motor shaft through a flexible coupling.

Application

- Tank cleaning pump
- Other

Principal particulars

MODEL	HCH-50D	HCH-70D	HCH-100D	HCH-125D	HCH-150D
Rotation	Clockwise when viewed from diver end
Suction bore[mm]	50	65	100	125	150
Discharge bore[mm]	50	65	100	125	150
Stuffing box seal	Gland packing
Weight[kg]	Refer to the outline drawing

Perfomance selection charts

Outline Dimension

MODEL	BORE		DIMENSIONS [mm]																			MOTOR POWER [kw]	PUMP WEIGHT [kg]
MODEL	SUC.	DIS.	A	B	C	D	E	F	G	H	I	J	K	L	M	N	P	T	X	Y	Z	MOTOR POWER [kw]	PUMP WEIGHT [kg]
HCH-50D	50	50	380	190	200	200	190	105	22	400	160	50	180	360	320	50	570	120	35	140	350	37~45	165
HCH-70D	65	65	450	240	235	220	220	115	22	455	175	55	190	380	360	60	690	135	40	165	380	45~55	240
HCH-100D	100	100	563	245	310	310	250	135	30	620	235	60	260	420	410	65	818	160	45	180	360	55~110	360
HCH-125D	125	125	635	410	320	320	350	200	30	640	255	70	280	560	430	75	1045	200	40	200	480	45	590
HCH-150D	150	150	641	418	320	325	350	200	30	645	267	70	292	585	450	75	1059	235	45	222	500	55	595

Standard Sectional drawing

PART No.	NAME OF PART	MATERIAL		REQ.No. FOR 1 PUMP
PART No.	NAME OF PART	NAME	KS	REQ.No. FOR 1 PUMP
101A	LOWER HALF CASING	CAST IRON	GC200	1
101B	UPPER HALF CASING	CAST IRON	GC200	1
108	STAGE BUSH	BRONZE	BC6	2
301A	No.1 IMPELLER	PHOSPHOR BRONZE	PBC2	1
301B	No.2 IMPELLER	PHOSPHOR BRONZE	PBC2	1
401	PUMP SHAFT (WITH KEY)	STAINLESS STEEL	STS304	1
404	No.1 SLEEVE	STAINLESS STEEL	STS304	1
405	"O" RING	STAINLESS STEEL	STS304	2
406	No.2 SLEEVE	STAINLESS STEEL	STS304	1
407	SLEEVE NUT	STAINLESS STEEL	STS304	2
408	BEARING NUT (WITH WASHER)	CARBON STEEL	SM45C	2 set
411	BALL BEARING	BEARING STEEL		2
429	SPACE RING	STAINLESS STEEL	STS304	1
501	BEARING CASE	CAST IRON	GC200	2
503A	BEARRING COVER	CAST IRON	GC200	2
503B	BEARRING COVER	CAST IRON	GC200	1
503C	BEARRING COVER	CAST IRON	GC200	1
507A	OIL SEAL	CAST IRON	GC200	2
507B	OIL SEAL	RUBBER	RUBBER	1
701	GRAND PACKING	SEMI METALLINC		2 set
703	GRAND	BRONZE	BC6	1
801	PUMP COUPLING	MILD STEEL	SS400	1
802	MOTOR COUPLING	STAINLESS STEEL	STS304	1
803	COUPLING RING	STAINLESS STEEL	STS304	8
806	COUPLING BOLT.NUT & WASHER	STAINLESS STEEL	STS304	8
