제품 상세 정보

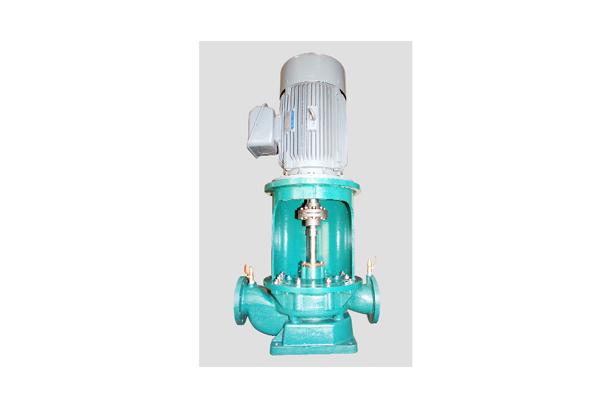

KVS Vertical in-line centrifugal pump, single stage & single suction
Construction
This pump is of the vertical single stage & single suction centrifugal type.
Its rotating element is connected to an electric motor shaft through a rigid coupling. coupling.
Application
- Cooling S.W. pump (MAIN/AUX.)
- Cooling F.W. pump (MAIN/AUX.)
- Other
Principal particulars
| MODEL | KVS-100 | KVS-125 | KVS-150 |
|---|---|---|---|
| Rotation | Clockwise when viewed from driver end | ||
| Suction bore[mm] | 100 | 125 | 150 |
| Discharge bore[mm] | 100 | 125 | 150 |
| Stuffing box seal | Gland packing or Mechanical seal | ||
| Weight[kg] | Refer to the outline drawing | ||
Perfomance selection charts
Outline Dimension
| MODEL | BORE | DIMENSIONS [mm] | MOTOR POWER [kw] | PUMP WEIGHT [kg] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SUC. | DIS. | A | B | C | D | E | F | G | H | S | |||
| KVS-100 | 100 | 100 | 340 | 300 | 180 | 255 | 255 | 170 | 195 | 610 | 25 | 3.7~11 | 180 |
| KVS-125 | 125 | 125 | 380 | 320 | 190 | 255 | 255 | 170 | 195 | 630 | 25 | 7.5~22 | 198 |
| KVS-150 | 150 | 150 | 420 | 360 | 215 | 255 | 270 | 210 | 240 | 700 | 27 | 15~30 | 228 |
Standard Sectional drawing
| PART No. | NAME OF PART | MATERIAL | REQ.No. FOR 1 PUMP | |
|---|---|---|---|---|
| NAME | KS | |||
| 101 | CASING | *(on BUYER'S request) | * | 1 |
| 106 | CASING RING | BRONZE | BC6 | 2 |
| 111 | PUMPO BED | CAST IRON | GC200 | 1 |
| 112 | MOTOR FPAME | CAST IRON | GC200 | 1 |
| 115 | GASKET | NON - ASBESTOS | 1 | |
| 201 | CASING COVER | *(on BUYER'S request) | * | 1 |
| 202 | LINE BEARING | CARBON | 1 | |
| 203 | LINE BEARING COVER | BRONZE | BC6 | 1 |
| 301 | IMPELLER | *(on BUYER'S request) | * | 1 |
| 401 | SHAFT | STAINLESS STEEL | STS304 | 1 |
| 402 | IMPELLER KEY | STAINLESS STEEL | STS304 | 1 |
| 403 | COUPLING KEY | CARBON STEEL | SM45C | 1 |
| 404 | SLEEVE | STAINLESS STEEL | STS304 | 1 |
| 405 | O - RING | RUBBER | 1 | |
| 413 | IMPELLER WASHER | STAINLESS STEEL | STS304 | 1 |
| 414 | IMPELLER NUT | STAINLESS STEEL | STS304 | 1 |
| 416 | SNAP RING | CARBON TOOL STEEL | SK5 | 1 |
| 601 | MECHANICAL SEAL COVER | BRONZE | BC6 | 1 |
| 602 | MECHANICAL SEAL | 1 set | ||
| 701 | GLAND PACKING | SEMI METALUC | 1 set | |
| 703 | GLAND | BRONZE | BC6 | 1 |
| 801 | PUMP COUPLING | DUCTILE CASTIRON | GCD450 | 1 |
| 802 | MOTOR COUPLING | DUCTILE CASTIRON | GCD450 | 1 |
| 804 | COUPLING BOLT & NUT | STEEL | SS400 | 1 set |
