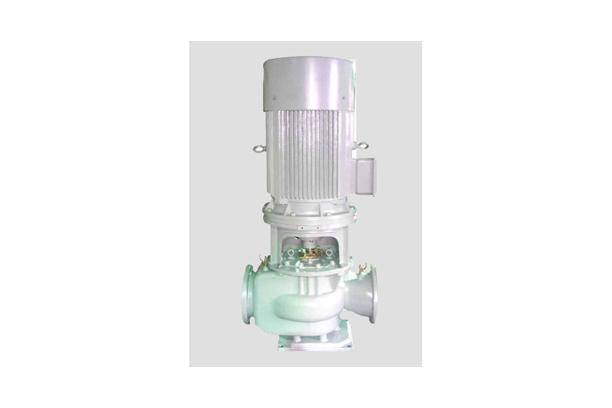

KVD Vertical in-line centrifugal pump, single stage & double suction

Construction

This pump is of the vertical single stage & double suction centrifugal type.
Its rotating element is connected to an electric motor shaft through a rigid coupling.

Application

- Ballast pump
- Cooling S.W. pump (MAIN/AUX.)
- Cooling F.W. pump (MAIN/AUX.)
- Other

Principal particulars

MODEL	KVD-200	KVD-250	KVD-300	KVD-350	KVD-400
Rotation	Clockwise when viewed from driver end
Suction bore[mm]	200	250	300	350	400
Discharge bore[mm]	200	250	300	350	400
Stuffing box seal	Gland packing or Mechanical seal
Weight[kg]	Refer to the outline drawing

Perfomance selection charts

Outline Dimension

MODEL	BORE		DIMENSIONS [mm]											MOTOR POWER [kw]	PUMP WEIGHT [kg]
MODEL	SUC.	DIS.	A	B	C	D	E	F	G	H	I	J	S	MOTOR POWER [kw]	PUMP WEIGHT [kg]
KVD-200	200	200	400	400	255	305	315	145	170	810	205	230	27	15~45	362
KVD-250	250	250	430	430	290	305	350	180	210	880	240	270	27	30~90	465
KVD-300	300	300	470	470	325	310	390	200	230	940	275	305	33	45~132	580
KVD-350	350	350	480	480	355	365	380	235	265	1030	300	330	33	55~150	738
KVD-400	400	400	600	580	410	430	495	275	305	1170	355	385	33	75~150	886

Standard Sectional drawing

PART No.	NAME OF PART	MATERIAL		REQ.No. FOR 1 PUMP
PART No.	NAME OF PART	NAME	KS	REQ.No. FOR 1 PUMP
101	CASING	*(on BUYER'S request)	*	1
106	CASING RING	BRONZE	BC6
111	PUMPO BED	CAST IRON	GC200	1
112	MOTOR FPAME	CAST IRON	GC200	1
115	GASKET	NON - ASBESTOS		1
116	O - RING	RUBBER		1
201	CASING COVER	*(on BUYER'S request)	*	1
202	LINE BEARING	CARBON		1
203	LINE BEARING COVER	BRONZE	BC6	1
301	IMPELLER	*(on BUYER’S request)	*	1
401	SHAFT	STAINLESS STEEL	STS304	1
402	IMPELLER KEY	STAINLESS STEEL	STS304	1
403	COUPLING KEY	CARBON STEEL	SM45C	1
404	SLEEVE	STAINLESS STEEL	STS304	1
405	O - RING	RUBBER		1
413	IMPELLER WASHER	STAINLESS STEEL	STS304	1
414	IMPELLER NUT	STAINLESS STEEL	STS304	1
416	SNAP RING	CARBON TOOL STEEL	SK5	1
601	MECHANICAL SEAL COVER	BRONZE	BC6	1
602	MECHANICAL SEAL			1 set
701	GLAND PACKING	SEMI METALUC		1 set
703	GLAND	BRONZE	BC6	1
801	PUMP COUPLING	DUCTILE CASTIRON	GCD450	1
802	MOTOR COUPLING	DUCTILE CASTIRON	GCD450	1
804	COUPLING BOLT & NUT	STEEL	SS400	1 set
