제품 상세 정보

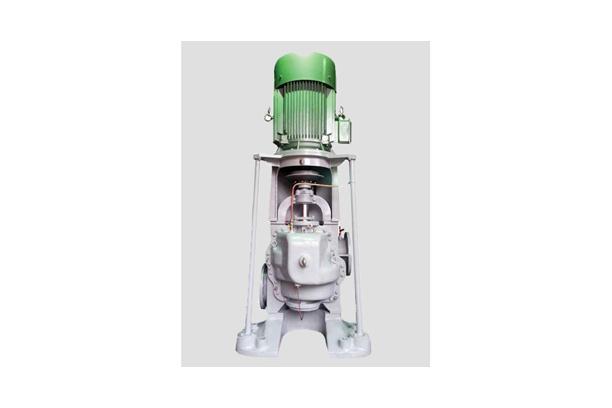

VS2 Vertical in-line centrifugal pump, two stage & single suction

Construction

This pump is of the vertical two stage & single suction centrifugal type.
Its rotating element is connected to an electric motor shaft through a flexible coupling.
The casing of this series is vertically split type.

Application

- Fire, bilge & G/S pump
- Emergency fire pump
- Other

Principal particulars

MODEL	VS2-125	VS2-150	VS2-200	VS2-250
Rotation	Clockwise when viewed from driver end
Suction bore[mm]	125	150	200	250
Discharge bore[mm]	125	150	200	250
Stuffing box seal	Gland packing or Mechanical seal
Weight[kg]	Refer to the outline drawing

Perfomance selection charts

Outline Dimension

MODEL	BORE		DIMENSIONS [mm]																	MOTOR POWER [kw]	PUMP WEIGHT [kg]
MODEL	SUC.	DIS.	A	B	C	D	E	F	G	H	J	K	L	L1	M	N	R1	R2	S	MOTOR POWER [kw]	PUMP WEIGHT [kg]
VS2-125	125	125	538	368	245	375	249	133	80	1015	280	350	200	200	320	310	190	375	24	11~26	400
VS2-150	150	150	550	368	245	375	249	133	80	1015	280	350	200	240	310	310	190	375	24	19~30	420
VS2-200	200	200	540	290	295	500	300	159	50	1025	350	420	220	220	360	360	235	450	28	26~30	628
										1062										33~45
										1140										50~75
VS2-250	250	250	666	360	295	500	300	159	100	159	350	420	240	240	430	430	28	265	28	45~75	685

Standard Sectional drawing

PART No.	NAME OF PART	MATERIAL		REQ.No. FOR 1 PUMP
PART No.	NAME OF PART	NAME	KS	REQ.No. FOR 1 PUMP
101	CASING	*(on BUYER'S request)	*	1
105	END COVER	CAST IRON	GC200	1
107	MOUTH RING	BRONZE	BC6	2
108	MOUTH RING	BRONZE	BC6	1
109	BLIND COVER	CAST IRON	GC200	1
111	PUMP BED	CAST IRON	GC200	1
112	MOTOL FRAME	CAST IRON	GC200	1
113	STAY	STEEL GAS PIPE	SGP	2
114	NECH BUSH	BRONZE	BC6	1
201	CASING COVER	*(on BUYER’S request)	*	1
202	LINE BEARING	CARBON		1
301A	IMPELLER	*(on BUYER’S request)	*	1
301B	IMPELLER	*(on BUYER'S request)	*	1
401	SHAFT	STAINLESS STEEL	STS304	1
402	IMPELLER KEY	STAINLESS STEEL	STS304	1
403	COUPLING KEY	CARBON STEEL	SM45C	1
404	No.1 SLEEVE	STAINLESS STEEL	STS304	1
406	No.2 SLEEVE	STAINLESS STEEL	STS304	1
408	BEARING NUT	MILD STEEL	SS41	1
409	BEARING WASHER	MILD STEEL	SS41	1
411	BALL BEARING	BEARING STEEL		2
413	IMPELLER WASHER	STANLESS STEEL	STS304	1
414	IMPELLER NUT	STANLESS STEEL	STS304	2
414	IMPELLER NUT	STAINLESS STEEL	STS304	1
415	FLINGER	BRONZE	BC6	1
501	BEARING CASE	CAST IRON	GC200	1
502	BEARING COVER	CAST IRON	GC200	1
504A	FELT RING	FELT		1
504B	FELT RING	FELT		1
601	MECHANICAL SEAL COVER	BRONZE	BC6	1
602	MECHANICAL SEAL			1 set
701	GRAND PACKING	SEMI METALLINC		1 set
702	LANTERN RING	BRONZE	BC6	1
703	GRAND	BRONZE	BC6	1
801	PUMP COUPLING	CAST IRON	GC200	1
802	MOTOR COUPLING	CAST IRON	GC200	1
803	COUPLING RING	RUBBER	RUBBER	1
806	SHAFT BOLT & WASHER	MILD STEEL	SS400	1
