SSCAN TECH

SSCAN TECH

Air Tester

Model

Series

Air Testor


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

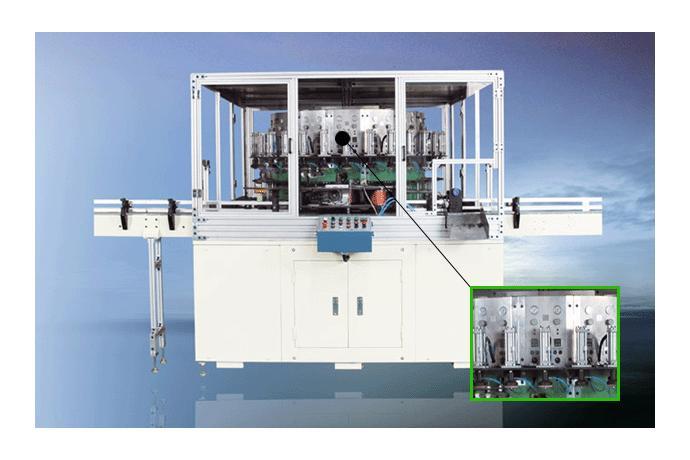

AIR TESTER : SSC-AT100
SSCAN TECH Air Tester SSC-AT100 / AT50

LAYOUT

SSCAN TECH Air Tester SSC-AT100 / AT50 1

SPECIFICATIONS

AIR TESTER

  CAPACITY

  30~100 CANS/MIN

  POCKET NUMBER

  30 POCKETS

  DETECTABLE MIN. HOLE

  Ø 0.3 MM

  HORSE POWER REQUIRED

  3.75 KW

  COMPRESSED AIR

  5 KG / CM2

  FLOOR SPACE

  2300 X 2870 MM

  HEIGHT OVER ALL

  2000 MM

  CAN SIZE

  1L ~ 18L (IRREGULAR CAN)

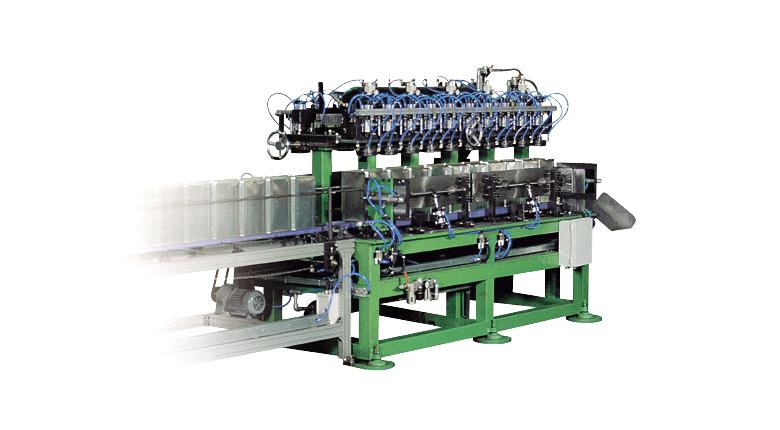

AIR TESTER : AT50
SSCAN TECH Air Tester SSC-AT100 / AT50 2

LAYOUT

SSCAN TECH Air Tester SSC-AT100 / AT50 3

SPECIFICATIONS

LEAKAGE TESTER

  CAPACITY PER MINUT

  30~50 CANS/MIN.

  THE NUMBER OF TEST HEAD

  20 HEADS

  DETECTIVE MIN. HOLE

  Ø0.3 MM

  HORSE POWER REQUIRED

  1.5 KW

  FLOOR SPACE

  1340 X 7100 MM

  HEIGHT OVER ALL

  1900 MM

  NET WEIGHT

  APPROX. 4000KG

FEATURES

* COMPETITIVE PRICE AND GOOD QUALITY

* VARIOUS SQUARE CAN HEIGHT SIZE AND CONVENIENCE : NO MATTER WHERE SPOUT IS, EASILY CHECK AIR PRESSURE
  WITH VARIOUS CAN HEIGHT SIZES BETWEEN 250 MM AND 400 MM

* PROTECT CAN : BLOCKING THE ALL FOUR SIDES OF CAN, MINIMIZE TRANSFORM OF CAN.

* HORIZONTAL TYPE : MINIMIZE SPACE OF WORK INSTEAD OF USING ROUND TYPE.

* HIGH TECH SENSOR : IT WILL UPGRADE QUALITY OF CAN

* PLC CONTROL
