MATERIAL UTILIZATION COMPARISION
* End Size : 211D. cut edge Ø85.50mm 12column. 11 Row. 132/Ends/Sheet
* Compare with A type sheet. C type sheet will be able to save 14.6% material.
|
TYPE |
UTILIZABLE |
SHEET AREA |
UTILIZABLE |
|
A |
7574.88 cm2 |
10592.79 cm2 |
71.5 % |
|
B |
7574.88 cm2 |
9156.75 cm2 |
82.7 % |
|
C |
7574.88 cm2 |
8790.50 cm2 |
86.1 % |
SHEET PATTERN
SPECIFICATIONS
|
PRESS CAPACITY |
30TON |
60TON |
80TF |
110TF |
|
Stroke Per Min |
110 spm |
110 spm |
80 spm |
110 spm |
|
Die Hight |
360mm |
390mm |
400mm |
380mm |
|
Open Hight |
480mm |
510mm |
460mm |
520mm |
|
Slide Strok Lanth |
130mm |
140mm |
60mm |
140mm |
|
Die Hight |
10mm |
20mm |
20mm |
35mm |
|
Slide Area |
900 x 200mm |
900 x 250mm |
1500 x 300mm |
960 x 450mm |
|
Ded Area |
900 x 200mm |
1200 x420mm |
1600 x 400mm |
1200 x 560mm |
|
Main Motor |
7.5kw x 6p,1150rpm |
11kw x 6p,1150rpm |
18.5kw x 4p |
22kw x 4p |
|
Slider Adjust Motor |
Hand Type |
0.75kw x 4p |
0.75kw x 4p |
0.75 x 4p |
|
Compressed Air |
10kg/cm |
10kg/cm |
10kg/cm |
10kg/cm |
|
Air Consumption |
350 /min |
350 /min |
350 /min |
350 /min |
|
Oil Tank Volume |
50 |
80 |
100 |
270 |
|
Fllor Space |
W2600 x D1140 |
W2600 x D1190 |
W2600 x D1240 |
W2350 x D1200 |
|
Hight Over All |
2600mm |
2700mm |
2800mm |
2825mm |
|
Gross Weight |
Approx 8000kg |
Approx 10000kg |
Approx 12000kg |
Approx 14000kg |
SPECIFICATIONS
* End Size : 211D. cut edge Ø85.50mm 12column. 11 Row. 132/Ends/Sheet
* Compare with A type sheet. C type sheet will be able to save 14.6% material.

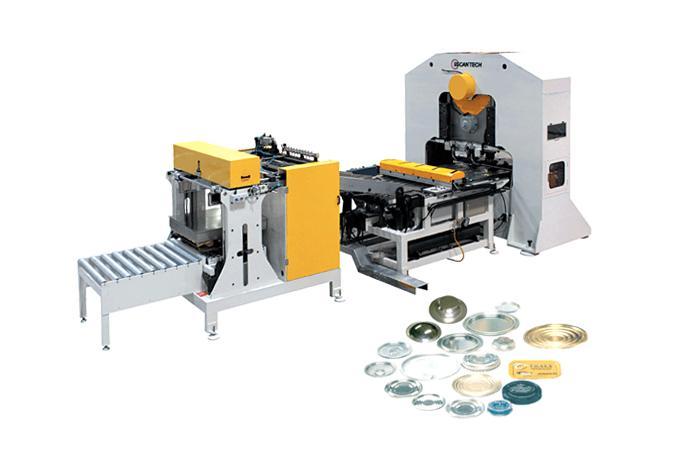

FEATURES
* COMPETITIVE PRICE AND GOOD QUALITY
* VARIOUS SIZES : SIZES ARE BETWEEN 200D AND 610D WITH EASY CHANGEABLE DIE SET MOLD.
* DOUBLE DIE SET MOLD : MAXIMIZE PRODUCTIVITY WITH 1000 LIDS PER MIN.
* ZIGZAG & STRAIGHT FEEDING SYSTEM.
* TOUCH SCREEN : EASILY CHECK MACHINE RUNNING CONDITION AND PROBLEMS.
* TRANSPARENT OIL DISTRIBUTOR SYSTEM : EASY TO CHECK OIL RUNNING AND SHORT OF OIL
* HIGH TECH SENSOR : MACHINE WILL STOP WHEN PRODUCT DOES NOT RUN SMOOTHLY.
* HIGH RIGID FRAME : RATIONALLY DESIGNED FRAME KEEPS SUFFICIENT STRENGTH AND MAINTAINS ACCURATE PRECISION FOR DYNAMIC LOAD.
* ANGLE SEQUENCER CONTROL : PRECISE CONTROL INFORMATION IN RUNNING AND OPERATING WHICH IS
SIMPLE PROGRAMMABLE ENABLES TO STOP AT THE TOOP DEAD POINT AUTOMATICALLY IN ANY SPEED.
* INVERTOR IS AVAILABLE RUNNING SPEED.
* SAFETY : PUTTING THE TRANSPARENT WINDOW IN FRONT OF DIE SET MOLD, EASILY CHECK THE PROBLEM
AND WORKER CAN STAY AWAY FROM SAFETY ACCIDENT.
* PLC CONTROL.
