SSCAN TECH

SSCAN TECH

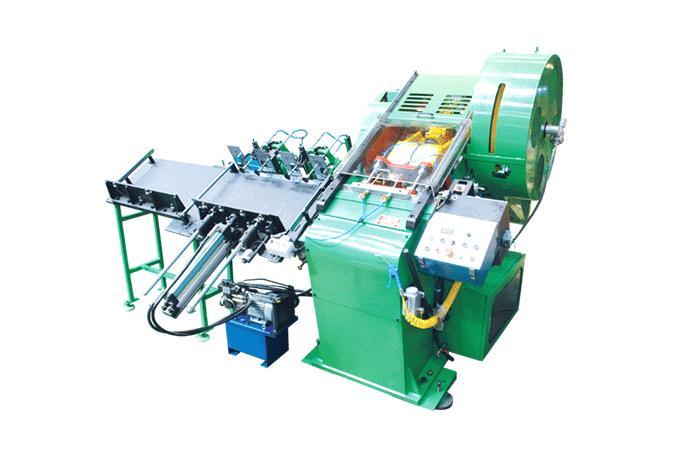

Double Die Press

Model

Series

Aerosol Cone & Dome Making Line


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

SPECIFICATIONS

DOUBLE DIE PRESS

  RANGE OF CAN DIAMETER

  200~401 D

  MAX. LENGTH OF STRIP

  1060 MM

  MIN. LENGTH OF STRIP

  510 MM

  MAX. WIDTH OF STRIP

  220 MM

  MIN. WIDTH OF STRIP

  130 MM

  MAX. CUTS PER STRIP

  13 PCS

  MIN. CUTS PER STRIP

  5 PCS

  STROKE PER MIN.

  100~200 SPM

  HORSE POWER REQUIRED

  7 1/2, 1/4, 1/4 HP

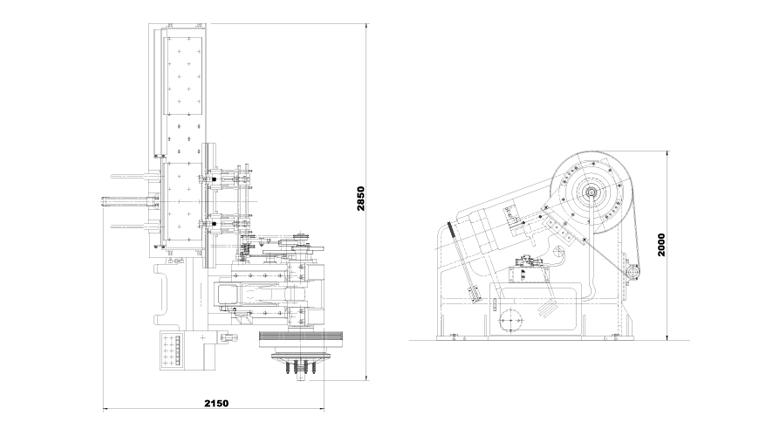

  FLOOR SPACE

  3450 X 2460 X 1800 MM

  NET WEIGHT

  5500 KG
