SSCAN TECH

SSCAN TECH

Aerosol Cone & Dome Making Line

Model

Series

Aerosol Cone & Dome Making Line


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

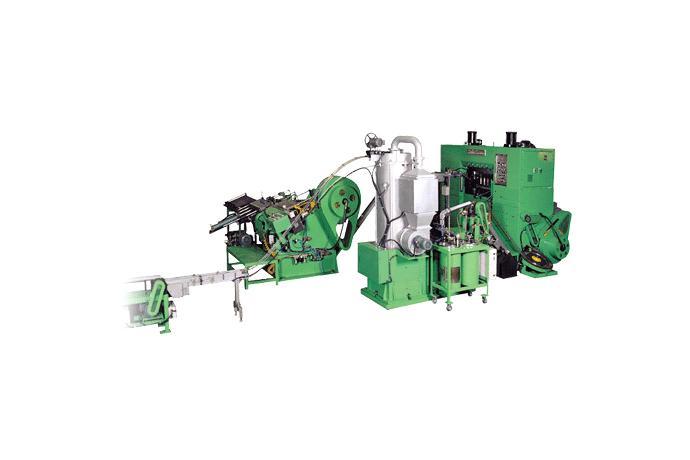

SSCAN TECH Aerosol Cone & Dome Making Line

This is an automatic line to produce aerosol cone & dome and its production range is 200D-211D.
The production capacity is maximum 220 cones per minute.


SPECIFICATIONS

AUTO STRIP FEED PRESS

  PRESS CAPACITY

  40 FT

  DIE HEIGHT

  250 MM

  DIE HEIGHT ADJUST

  25 MM

  SLIDE STROKE LENGTH

  110 MM

  SLIDE AREA

  200 X 200 MM

  BOLSTER AREA

  540 X 400 MM

  STROKE PER MIN.

  MAX. 90 SPM

  HORSE POWER REQUIRED

  3.75 KW

  HYD. UNIT MOTOR

  0.75 KW

  SCRAP EJECTOR MOTOR

  0.2 KW

  COMPRESSED AIR

  5 KG/CM2

  FLOOR SPACE

  W2300 X L4300 MM

  HEIGHT OVER ALL

  1850 MM

  NET WEIGHT

  3500 KG



AUTO TRANSFER PRESS

  PRESS CAPACITY

  75 FT

  DIE HEIGHT

  400 MM

  DIE HEIGHT ADJUST

  5 MM

  SLIDE STROKE LENGTH

  130 MM

  TABLE HEIGHT FROM FLOW LINE

  1270 MM

  SHELL FEEDING HEIGHT

  1900 MM

  NUMBER OF STATIONS

  6 STATIONS, 8 STATION

  TRANSFER STROKE

  120 MM, 95 MM

  STROKE PER MINUTE

  MAX. 90 SPM

  HORSE POWER REQUIRED

  11 KW

  OIL PUMP MOTOR

  400 W

  LUBRICANT VOLUME

  5.4 L/MIN

  FLOOR SPACE

  W2620 X D1100 MM

  HEIGHT OVER ALL

  2750 MM

  NET WEIGHT

  13000 KG



AUTO LINER & DRYER

  CAPACITY PER MINUTE

  MAX. 90 CPM

  RANGE OF CAN DIA

  200-211 DIA

  HORSE POWER REQUIRED

  2.2 KW

  COMPOUND DRUM

  1 SET

  DRYER TEMPRATURE CONTROL TYPE

  BY  THERMISTOR

  ELECTRIC HEATER

  15 KW

  FLOOR SPACE

  1200 X 2100 MM

  HEIGHT OVER ALL

  2410 MM

  BLOWER MOTOR

  0.7 KW

  DISCHARGE CONVEYOR MOTOR

  0.2 KW

  NET HEIGHT

  2000 KG





FEATURES

* COMPETITIVE PRICE AND GOOD QUALITY

* VARIOUS SIZES : SIZES ARE BETWEEN 200D AND 211D WITH EASY CHANGABLE DIE SET MOLD.

* TRANSPARENT OIL DISTRIBUTOR SYSTEM : EASY TO CHECK OIL RUNNING AND SHORT OF OIL.

* HIGH TECH FINGER SENSOR : MACHINE WILL STOP WHEN PRODUCT DOES NOT RUN SMOOTHLY

* HIGH RIGID FRAME : RATIONALLY DESIGNED FRAME KEEPS SUFFICIENT STRENGTH AND MAINTAINS ACCURATE PRECISION FOR DYNAMIC LOAD.

* INVERTOR IS AVAILABLE FOR VARIABLE RUNNING SPEED

* PLC CONTROL
