SSCAN TECH

SSCAN TECH

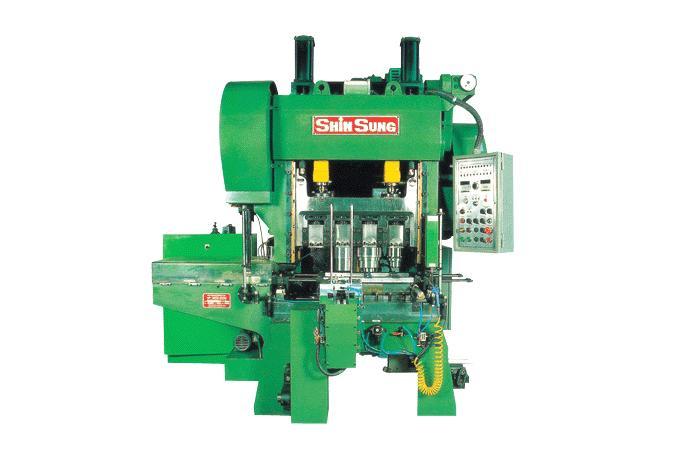

Auto Transfer Press

Model

Series

Tuna 2 Piece Can Body Making Line


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

SPECIFICATIONS

AUTO TRANSFER PRESS

  PRESS CAPACITY

  50 TF

  DIE HEIGHT

  265 MM

  DIR HEIGHT ADJUSTMENT

  ± 15 MM

  SLIDE STROKE LENGTH

  140 MM

  NUMBER OF STATION

  3 STATIONS

  TRANSFER STROKE

  190 MM

  STROKE PER MINUTE

  MAX. 50 SPM

  MAIN MOTOR

  7.5 KW X 4P

  OIL PUMP MOTOR

  0.2 KW X 4P

  LUBRICATE VOLUME

  5.4 L/MIN

  COMPRESSED AIR

  6 KG/CM2

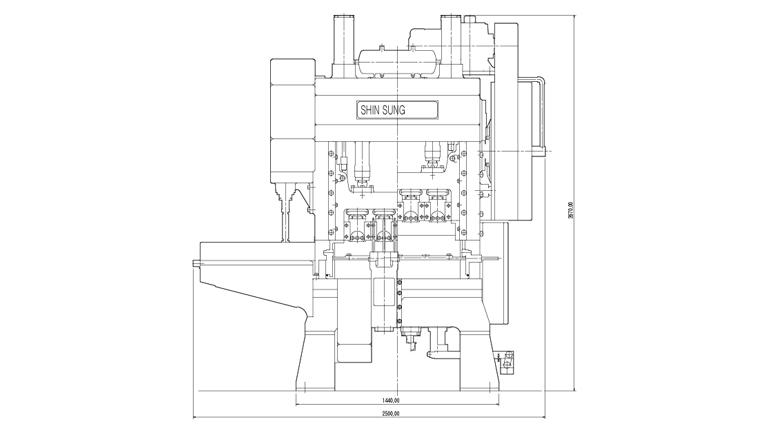

  FLOOR SPACE

  W1440 X D1100 X 2670

  NET WEIGHT

  APPROX. 5400 KG



FEATURES

* COMPETITIVE PRICE AND GOOD QUALITY

* HIGH SPEED AND VARIOUS SIZE : AVAILABLE SIZE ARE BETWEEN 211D AND 307D.

* VERTICAL TYPE : PROTECT WEARING OF GIB OF PRESS AFTER LONG TIME RUNNING INSTEAD OF USING INCLINED PRESS.

* CENTRAL LUBRICANT OIL SYSTEM : AUTO OIL PUMP MAKES MACHINE SMOOTH AND LAST MACHINE LIFE.

* HIGH RIGID FRAME : RATIONALLY DESIGNED FRAME KEEPS SUFFICIENT STRENGTH ANS MAINTAINS
  ACCURATE PRECISION FOR DYNAMIC LOAD.

* ANGLE SEQUENCER CONTROL : PRECISE CONTROL INFORMATION IN RUNNING AND OPERATING WHICH
  IS SIMPLY PROGRAMMABLE ENABLES TO STOP AT THE TOP DEAD POINT AUTOMATICALLY IN ANY SPEED.

* PLC CONTROL

* INVERTOR IS AVAILABLE FOR VARIABLE RUNNING SPEED.
