SSCAN TECH

SSCAN TECH

Tuna Two Piece Can Body Making Line

Model

Series

Tuna 2 Piece Can Body Making Line


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

MATERIAL UTILIZATION COMPARISION

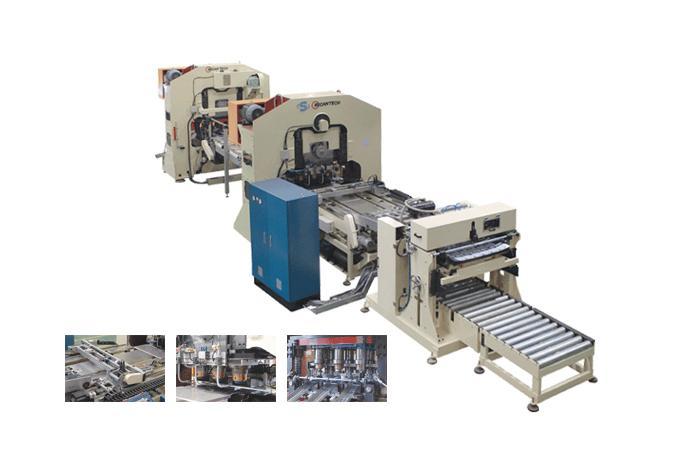

SSCAN TECH Tuna Two Piece Can Body Making Line SSC-TN2

 * End Size : 211D. cut edge Ø85.50mm 12column. 11 Row. 132/Ends/Sheet
* Compare with A type sheet. C type sheet will be able to save 14.6% material.

TYPE

UTILIZABLE
AREA cm2

SHEET AREA
cm2

UTILIZABLE
(%)

A

7574.88 cm2

10592.79 cm2

71.5 %

B

7574.88 cm2

9156.75 cm2

82.7 %

C

7574.88 cm2

8790.50 cm2

86.1 %



SHEET PATTERN

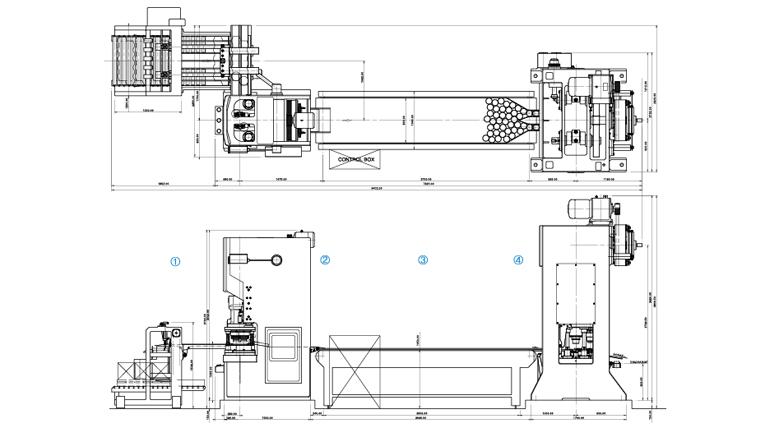

SSCAN TECH Tuna Two Piece Can Body Making Line SSC-TN2 1



SPECIFICATIONS

(1) AUTO SHEET FEEDER

  CAPACITY

  MAX. 25 SHEETS/MIN

  CHEET THICKNESS

  MAX. T = 0.4

  MAX. SHEET SIZE

  1060 X 1060 MM

  MAX. LOADING WEIGHT

  2 TON

  HORES POWER REQUIRED

  3.75 KW

  VACUUMPUMP

  1.5KW, 600L/MIN

  AIR CONSUMPTION

  40L/MIN

  MACHINERY WEIGHT

  2 EA

  FLOOR SPACE

  1500KG

  FLOOR SPACE

  1670 X 2000MM

  HEIGHT OVER ALL

  1669MM



(2) SHEET TRANSFER M/C

  MAX. SHEET SIZE

  1060 X 1060MM

  SEVO

  3KW - 1EA

  2KW - 1EA

  0.7KW - 1EA

  DOUBLE SHEET DETACTOR

  1 SET

  AIR CONSUMPTION

  120L/MIN

  HORSE POWER REQUIRED

  5.62KW

  FLOOR SPACE

  1700 X 3200 MM

  HEIGHT OVER ALL

  1170 MM



(3) ACOUMULATION CONVEYOR

  HORSE POWER REQUIRED

  2.2KW

  CONVEYOR SPEED

  256MM/SEC



(4) SHEET CUPPING PRESS

  PRESSCAPACITY

  110T

  STROKE PER MIN

  71SPM

  DIE HEIGHT

  380 MM

  OPEN HEIGHT

  520MM

  SLIDE STROKELENGTH

  140MM

  DIE HEIGHT ADJUST

  35MM

  SLIDE AREA

  960 X 450MM

  BED AREA

  1200 X 560MM

  TABLE HEIGHT from FL

  875MM

  MAIN MOTOR

  22KW X 4P

  COMPRESSED AIR

  10Kg/cm2

  AIR CONSUMPTION

  350L/MM

  OILTANK VOLUME

  3088 MM

  FLOOR SPACE

  270 LITER

  HEIGHT OVER ALL

  2350 X 1200MM

  GROSS WEIGHT

  2825 MM



  Approx. 12000Kg



FEATURES

* COMPETITIVE PRICE AND GOOD QUALITY

* HIGH SPEED AND VARIOUS SIZE : AVAILABLE SIZE ARE BETWEEN 211D AND 401D WITH 140 TO 200 CANS PER MIN.

* VERTICAL TYPE : PROTECT WEARING OF GIB OF PRESS AFTER LONG TIME RUNNING INSTEAD OF USING INCLINED PRESS.

* DOUBLE SHEET DETECTOR : DETECTING THE DOUBLE SHEET INSERT, PROTECT MOLD AND LAST MACHINE LIFE.

* HIGH TECH FINGER SENSOR : MACHINE WILL STOP WHEN PRODUCT DOES NOT RUN SMOOTHLY USING THE HIGH TECH FINGER SENSOR.

* CENTRAL LUBRICANT OIL SYSTEM : AUTO OIL PUMP MAKES MACHINE SMOOTH AND LAST MACHINE LIFE.

* HIGH RIGID FRAME : RATIONALLY DESIGNED FRAME KEEPS SUFFICIENT STRENGTH ANS MAINTAINS ACCURATE PRECISION FOR DYNAMIC LOAD.

* ANGLE SEQUENCER CONTROL : PRECISE CONTROL INFORMATION IN RUNNING AND OPERATING WHICH
   IS SIMPLY PROGRAMMABLE ENABLES TO STOP AT THE TOP DEAD POINT AUTOMATICALLY IN ANY SPEED.

* PLC CONTROL

* INVERTOR IS AVAILABLE FOR VARIABLE RUNNING SPEED.
