SSCAN TECH

SSCAN TECH

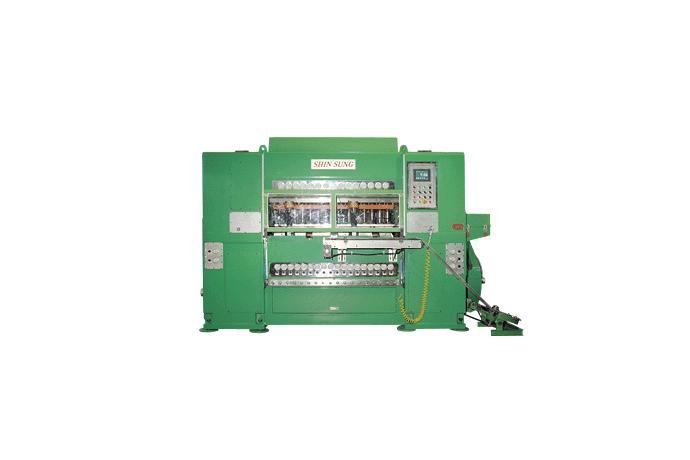

Aerosol Transfer Press

Model

Series

Aerosol Cone & Dome Making Line


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

SPECIFICATIONS

AUTO TRANSFER PRESS

  PRESS CAPACITY

  110 FT

  DIE HEIGHT

  400 MM

  DIE HEIGHT ADJUST

  ±5 MM

  SLIDE STROKE LENGTH

  130 MM

  TABLE HEIGHT FROM FL

  1270 MM

  FLOOR HEIGH FROM FL

  1430 MM

  SHELL FEEDING HEIGHT

  1740 SPM

  NUMBER OF STATIONS

  6 ST X 2, 8 ST X 2

  TOTAL STATIONS

  8 ST X 2

  TRANSFER STROKE

  110 MM

  STROKE PER MIN.

  100 SPM

  MAIN MOTOR

  15 KW X 4P, 1750 RPM

  OIL PUMP MOTOR

  AC 400W 4P

  CURLING MOTOR

  AC 400W 4P

  COMPRESSED AIR

  6 KG/CM2

  LUBRICANT VOLUME

  6.5 L/MIN.

  OIL TANK VOLUME

  280 LITER

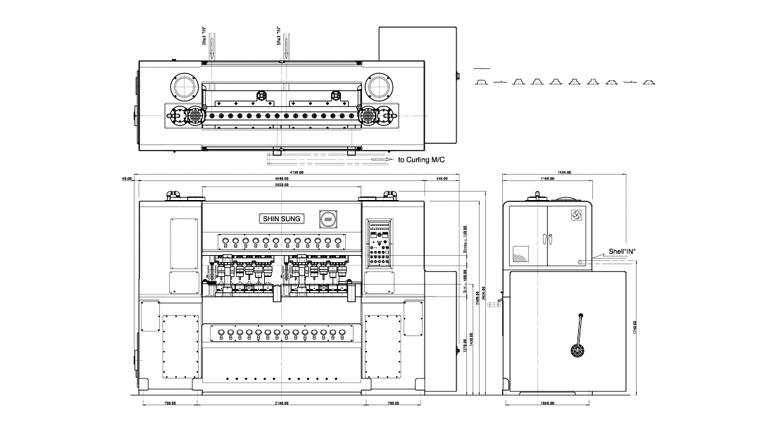

  FLOOR SPACE

  W3690 X D1160

  HEIGHT OVER ALL

  2626 MM

  NET WEIGHT

  APPROX. 16000 KG



FEATURES

* COMPETITIVE PRICE AND GOOD QUALITY

* VARIOUS SIZES : SIZES ARE BETWEEN 200D AND 211D WITH EASY CHANGEABLE DIE SET MOLD.

* DOUBLE DIE SET MOLD : MAXIMIZE PRODUCTIVITY WITH 200 LIDS PER MIN.

* SPECIAL FACE CAM : MINIMIZE SHAKING OF CARRIER FINGER.

* TOUCH SCREEN : EASILY CHECK MACHINE RUNNING CONDITION AND PROBLEMS

* TRANSPARENT OIL DISTRIBUTOR SYSTEM : EASY TO CHECK OIL RUNNING AND SHORT OF OIL.

* HIGH TECH FINGER SENSOR : MACHINE WILL STOP WHEN PRODUCT DOES NOT RUN SMOOTHLY

* HIGH RIGID FRAME : RATIONALLY DESIGNED FRAME KEEPS SUFFICIENT STRENGTH AND MAINTAINS
  ACCURATE PRECISION FOR DYNAMIC LOAD.

* ANGLE SEQUENSER CONTROL : PRECISE CONTROL INFORMATION IN RUNNING AND OPERATING WHICH
  IS SIMPLY PROGRAMMABLE ENABLES TO STOP AT THE TOP DEAD POINT AUTOMATICALLY IN ANY SPEED.

* INVERTOR IS AVAILABLE FOR VARIABLE RUNNING SPEED

* SAFETY : PUTTING THE TRANSPARENT WINDOW IN FRONT OF DIE SET MOLD, EASILY CHECK THE
  PROBLEM AND WORKER CAN STAY AWAY FROM SAFETY ACCIDENT.

* PLC CONTROL
