SSCAN TECH

SSCAN TECH

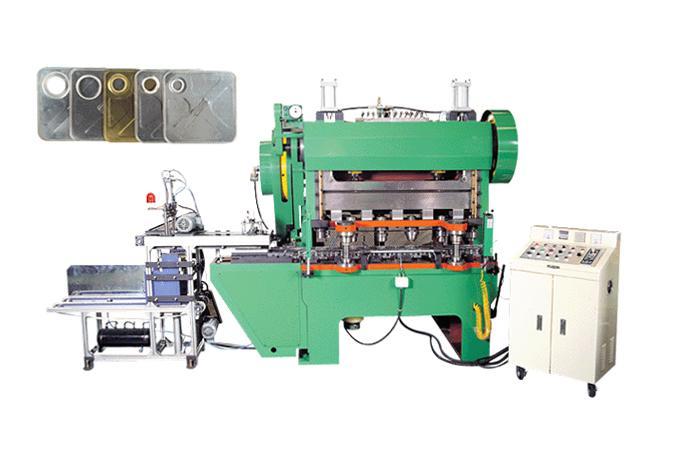

Auto Transfer Press

Model

Series

18L Square Can Body & End Making Line


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

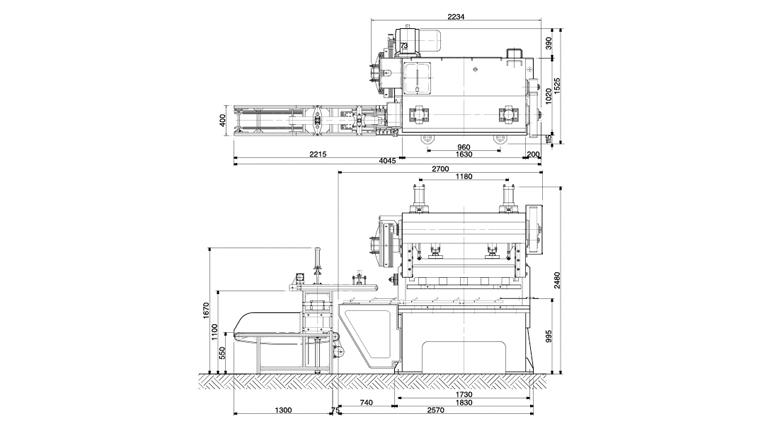

SPECIFICATIONS

AUTO TRANSFER PRESS

  PRESS CAPACITY

  40 FT

  DIE HEIGHT

  400 MM

  DIE HEIGHT ADJUSTMENT

  ±20 MM

  STROKE PER MIN.

  MAX. 45 S.P.M

  HORSE POWER REQUIRED

  3.75 KW

  OVER ALL HEIGHT

  2480 MM

  FLOOR SPACE

  2700 X 1525 MM

  NUMBER OF STATIONS

  5 OR 6 STATIONS

  NET WEIGHT

  6500 KG



FEEDING MACHNIE

  CAPACITY PER MIN

  MAX. 45 C.P.M

  HORSE POWER REQUIRED

  06. KW

  FLOOR SPACE

  1890 X 400 MM

  HEIGHT OVER ALL

  1670 MM

  NET WEIGHT

  200 KG (APPROX.)



FEATURES

* COMPETITIVE PRICE AND GOOD QUALITY

* VARIOUS SIZES : EAST TO CHANGE SPOUT SIZE BY DIE SET MOLD

* SPECIAL FACE CAM : MINIMIZE SHAKING OF CARRIER FINGER.

* SAFETY : PUTTING SAFETY SENSOR IN FRONT OF DIE SET MOLD,
  WORKER CAN STAY AWAY FROM SAFETY ACCIDENT AND EASY TO CHECK PROBLEMS ON MOLD.

* CENTRAL LUBRICANT OIL SYSTEM : OIL PUMP MAKES MACHINE SMOOTH AND LAST MACHINE LIFE.

* HIGH RIGID FRAME : RATIONALLY DESIGNED FRAME KEEPS SUFFICIENT.

* STRENGTH AND MAINTAINS ACCURATE PRECISION FOR DYNAMIC LOAD.

* INVERTOR IS AVAILABLE FOR VARIABLE RUNNING SPEED

* PLC CONTROL
