SSCAN TECH

SSCAN TECH

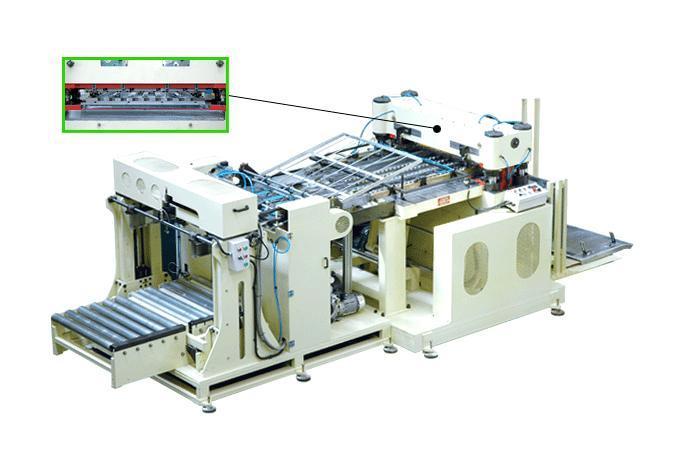

Auto Scroll Shear M/C

Model

Series

Aerosol Cone & Dome Making Line


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

SPECIFICATIONS

(A) AUTO SHEET FEEDER

  CAPACITY

  25~30 SHEETS/MIN

  SHEET THICKNESS

  MAX. T=0.4

  MAX. LOADING WEIGHT

  2 TON

  HORSE POWER REQUIRED

  3.75 KW

  VACUUM PUMP

  2HP X 4P 600L/MIN

  MACHINERY WEIGHT

  1500 KG

  FLOOR SPACE

  1670 X 2000 MM

  HEIGHT OVER ALL

  1935 MM

  DOUBLE SHEET DETACTOR

  1 SET

  MAX. SHEET SIZE

  1060 X 1060 MM

  SEPARATING MAGNET

  2 EA



(B) SCROLL SHEAR / (C) STACKER

  CAPACITY

  30~50 SPM

  MAX. SHEET SIZE

  1060 X 1060 MM

  MAX. SHEET THICKNESS

  0.17~0.42 MM

  MAX. STRIP WIDTH

  300 MM

  HORSE POWER REQUIRED

  5.62 KW

  FLOOR SPACE

  2280 X 1900 MM

  HEIGHT OVER ALL

  1690 MM
