Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139017
Product Name

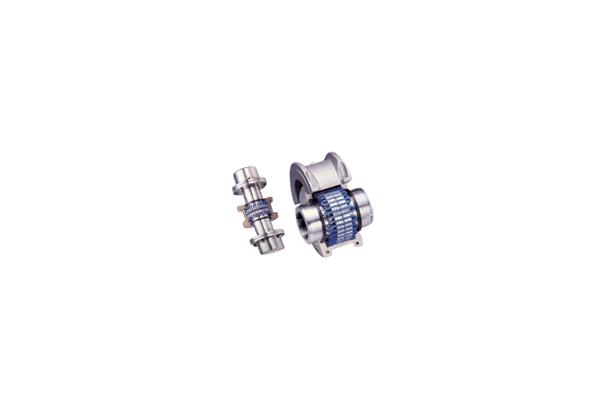

TV Type Taper Grid Coupling
Model Name
1020, 1030, 1040, 1050, 1060, 1070, 1080, 1090, 1100, 1110, 1120, 1130, 1140, 1150, 1160, 1170, 1180, 1190, 1200
Size
-
Weight
-
Product Details
Drawing
Specification
| Size | HP Per 100 rpm |
Max. Speed (rpm) |
Basic Torque (kg·cm) |
bore Dia (mm) |
Dimensions (mm) | Gap (mm) | Cplg wt (kg) |
Lube wt (kg) |
|||||||
| Max. | Min. | A | B | C | D | E | Min. | Nomal | Max. | ||||||
| 1020 | 0.68 | 6,000 | 486 | 30 | 12.7 | 111.1 | 98.0 | 47.5 | 39.7 | 24.2 | 1.5 | 3 | 4.5 | 2.0 | 0.03 |
| 1030 | 1.93 | 6,000 | 1,383 | 36 | 12.7 | 120.7 | 98.0 | 47.5 | 49.2 | 25.0 | 1.5 | 3 | 4.5 | 2.6 | 0.03 |
| 1040 | 3.22 | 6,000 | 2,304 | 44 | 12.7 | 128.5 | 104.6 | 50.8 | 57.1 | 25.7 | 1.5 | 3 | 4.5 | 3.4 | 0.05 |
| 1050 | 5.63 | 6,000 | 4,033 | 50 | 12.7 | 147.6 | 123.6 | 60.3 | 66.7 | 31.2 | 1.5 | 3 | 4.5 | 5.4 | 0.05 |
| 1060 | 8.85 | 6,000 | 6,337 | 57 | 19.1 | 162.0 | 130.0 | 63.5 | 76.2 | 32.2 | 1.5 | 3 | 4.5 | 7.3 | 0.09 |
| 1070 | 13 | 5,500 | 9,217 | 65 | 19.1 | 173.0 | 155.4 | 76.2 | 87.3 | 33.7 | 1.5 | 3 | 4.5 | 10.4 | 0.11 |
| 1080 | 27 | 4,750 | 19,010 | 79 | 27.0 | 200.0 | 180.8 | 88.9 | 104.8 | 44.2 | 1.5 | 3 | 4.5 | 17.7 | 0.17 |
| 1090 | 48 | 4,000 | 34,564 | 95 | 27.0 | 231.8 | 199.8 | 98.4 | 123.8 | 47.7 | 1.5 | 3 | 6 | 25.4 | 0.25 |
| 1100 | 81 | 3,250 | 58,183 | 107 | 41.3 | 266.7 | 245.7 | 120.6 | 142.0 | 60.0 | 1.5 | 3 | 6 | 42.2 | 0.43 |
| 1110 | 121 | 3,000 | 86,411 | 117 | 41.3 | 285.8 | 258.5 | 127.0 | 160.3 | 64.2 | 1.5 | 4.5 | 12.5 | 54.4 | 0.51 |
| 1120 | 177 | 2,700 | 126,736 | 136 | 60.3 | 319.0 | 304.4 | 149.2 | 179.4 | 73.4 | 1.5 | 4.5 | 12.5 | 81.6 | 0.73 |
| 1130 | 257 | 2,400 | 184,343 | 165 | 66.7 | 377.8 | 329.8 | 161.9 | 217.5 | 75.1 | 1.5 | 6 | 12.5 | 122.5 | 0.91 |
| 1140 | 370 | 2,200 | 264,993 | 184 | 66.7 | 416.0 | 371.6 | 182.8 | 254.0 | 78.2 | 1.5 | 6 | 12.5 | 180.1 | 1.13 |
| 1150 | 515 | 2,000 | 368,686 | 203 | 108.0 | 476.3 | 371.8 | 182.9 | 269.2 | 106.9 | 1.5 | 6 | 12.5 | 230.0 | 1.95 |
| 1160 | 724 | 1,750 | 518,465 | 228 | 120.7 | 533.4 | 402.2 | 198.1 | 304.8 | 114.3 | 1.5 | 6 | 12.5 | 321.1 | 2.81 |
| 1170 | 965 | 1,600 | 691,286 | 279 | 133.4 | 584.2 | 437.8 | 215.9 | 355.6 | 119.4 | 1.5 | 6 | 12.5 | 448.2 | 3.49 |
| 1180 | 1,338 | 1,400 | 958,584 | 311 | 152.4 | 630.0 | 483.6 | 238.8 | 393.7 | 130.0 | 1.5 | 6 | 12.5 | 591.0 | 3.76 |
| 1190 | 1,770 | 1,300 | 1,267,358 | 339 | 152.4 | 685.0 | 524.2 | 259.1 | 436.9 | 135.0 | 1.5 | 6 | 12.5 | 761.0 | 4.40 |
| 1200 | 2,413 | 1,100 | 1,728,216 | 361 | 177.8 | 737.0 | 564.8 | 279.4 | 497.8 | 145.0 | 1.5 | 6 | 12.5 | 1,021.0 | 5.62 |
Coupling weight, without bore machining.
