This product is manufactured by
HYUNDAI INDUSTRIAL MACHINERY
Manufacturer information
HYUNDAI INDUSTRIAL MACHINERY
Power Transmission Device Manufacturer, Universal Joint, Coupling
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139022
Product Name

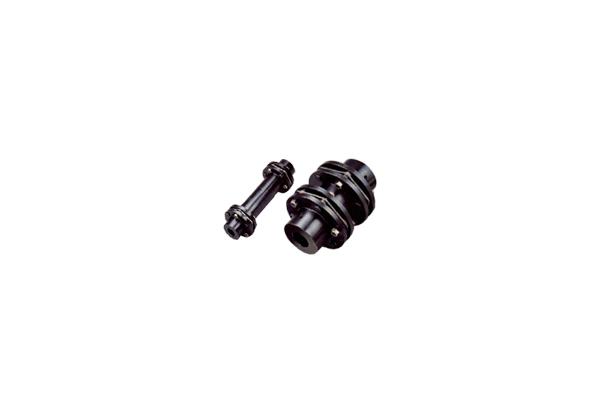

W8-D/C Type Disc Flexible Coupling
Model Name
-
Size
-
Weight
-
Product Details
도면
사양
| Size No. |
Torque (kg·m) |
A (mm) |
B (mm) |
C (mm) |
E4 | EH EV |
Emax (mm) |
F (mm) |
G (mm) |
H (mm) |
Max (mm) |
중량 W (mm) |
관성효과 GD² (kg·cm²) |
축방향 허용변위량 (±) |
볼트체결 토오크 (kg·cm²) |
| ⑴ D (mm) |
⑴ D (mm) |
||||||||||||||
| 01 | 392 | 214 | 333 | 92.6 | 117 | 240 | 95 | 108 | 12.2 | 137 | 15,000 | 38.0 | 0.65 | 2.1 | 7.3 |
| 03 | 726 | 246 | 369 | 99.6 | 127 | 269 | 108 | 121 | 13.7 | 156 | 13,000 | 55.5 | 1.24 | 2.1 | 15.9 |
| 05 | 915 | 276 | 421 | 118 | 153 | 255 | 111 | 134 | 17.5 | 161 | 11,600 | 72.2 | 1.8 | 2.1 | 22.1 |
| 10 | 1,100 | 276 | 421 | 115 | 153 | 258 | 111 | 134 | 19.0 | 161 | 11,600 | 73.3 | 1.8 | 2.1 | 22.1 |
| 15 | 1,570 | 308 | 492 | 134 | 172 | 278 | 133 | 160 | 19.0 | 193 | 10,300 | 119.7 | 3.7 | 2.4 | 45 |
| 20 | 2,610 | 346 | 557 | 146 | 191 | 283 | 152 | 183 | 22.5 | 218 | 9,200 | 174.3 | 6.8 | 2.9 | 58 |
| 25 | 3,850 | 375 | 619 | 167 | 223 | 308 | 165 | 198 | 28.0 | 240 | 8,500 | 233.8 | 10.8 | 3.1 | 110 |
| 30 | 4,810 | 410 | 682 | 192 | 254 | 319 | 178 | 214 | 31.0 | 258 | 7,800 | 305.3 | 16.7 | 3.3 | 150 |
| 35 | 5,820 | 445 | 720 | 208 | 270 | 339 | 187 | 225 | 31.0 | 272 | 7,200 | 367.4 | 25.0 | 3.6 | 170 |
| 40 | 6,570 | 470 | 768 | 206 | 274 | 342 | 205 | 247 | 34.0 | 297 | 6,800 | 447.5 | 31.1 | 4.0 | 170 |
| 45 | 8530 | 511 | 843 | 221 | 287 | 364 | 231 | 278 | 35.5 | 334 | 6,200 | 591.6 | 48.0 | 4.5 | 170 |
| 50 | 10,530 | 556 | 902 | 218 | 292 | 365 | 254 | 305 | 37.0 | 364 | 5,700 | 761.4 | 74.7 | 5.0 | 310 |
| 55 | 13,070 | 587 | 945 | 236 | 311 | 408 | 263 | 317 | 37.5 | 382 | 5,400 | 901.9 | 101.6 | 5.2 | 360 |
D칫수는 고객의 주문에 의해 변경 제작합니다. (SB형)
- 회전수에 따른 축단간 거리는 당사 기술진과 협의하여 결정하세요.
Dimension "D" can be adjusted on order (SB type).
- Rotating speed limits shown in above table.
