This product is manufactured by

HYUNDAI INDUSTRIAL MACHINERY

This product is manufactured by

HYUNDAI INDUSTRIAL MACHINERY

HomeManufacturersHYUNDAI INDUSTRIAL MACHINERYGear CouplingGS Type Gear Coupling

product Image

GS Type Gear Coupling

Model Name

10GS

Series

Gear Coupling

View AllView All Series

Data

-

Manufacturer information

HYUNDAI INDUSTRIAL MACHINERY

Power Transmission Device Manufacturer, Universal Joint, Coupling

Inquiry

Problem with product info?

Update request

Manufacturer

HYUNDAI INDUSTRIAL MACHINERY

Brand

-

SKU

139012

Product Name

GS Type Gear Coupling

Model Name

10GS, 15GS, 20GS, 25GS, 30GS, 35GS, 40GS, 45GS, 50GS, 55GS, 60GS, 70GSL, 80GSL, 90GSL, 100GSL, 110GSL, 120GSL

Size

-

Weight

-

Product Details

Drawing

Specification

Size	HP Per 100 rpm	Max. Speed (rpm)	Basic Torque (kg·cm)	Bore dia (mm)			Dimensions (mm)								Cplg wt (kg)	Lube wt (kg)
				Max.		Min.	A	B	C	D	E	J	L	Gap
				DE	DA	Min.	A	B	C	D	E	J	L	Gap
10GS	12	8,000	8,594	60	48	13	116	87	43	69	84	39	40	4	4.5	0.02
15GS	27	6,500	19,337	75	60	19	152	99	49	86	105	48	46	4	9.1	0.04
20GS	50	5,600	35,817	92	73	25	178	124	62	105	126	59	58	4	15.9	0.07
25GS	90	5,000	64,458	111	92	32	213	156	77	131	155	72	74	5	27.2	0.12
30GS	150	4,400	107,430	130	105	38	240	184	91	152	180	84	88	4	43.1	0.18
35GS	230	3,900	164,726	149	124	51	279	213	106	178	211	98	102	5.5	61.2	0.27
40GS	350	3,600	250,670	171	146	64	318	243	121	210	245	111	115	7	99.8	0.47
45GS	480	3,200	343,776	194	165	76	346	274	135	235	274	123	131	8	136.1	0.57
50GS	650	2,900	465,530	222	178	89	389	309	153	254	306	141	147	9	195.0	0.91
55GS	850	2,650	608,770	248	197	102	425	350	168	279	334	158	173	9	263.1	1.13
60GS	1,100	2,450	787,820	267	222	114	457	384	188	305	366	169	186	10	324.3	1.70

Size	HP Per 100 rpm	Max. Speed (rpm)	Basic Torque (kg·cm)	Bore dia (mm)			Dimensions (mm)										Cplg wt (kg)	Lube wt (kg)
				Max.		Min.	A	B	C	D	DG	E	J	L	K	Gap
				DE	DA	Min.	A	B	C	D	DG	E	J	L	K	Gap
70GSL	1,600	2,150	1,145,920	305	254	89	527	454	221	343	356	425	196	220	517	13	508.0	2.27
80GSL	2,100	1,750	1,504,020	343	279	102	591	511	249	356	368	451	243	249	572	13	698.5	4.99
90GSL	2,850	1,550	2,041,170	381	305	114	660	566	276	394	419	508	265	276	641	14	984.5	6.35
100GSL	4,000	1,450	2,964,800	406	343	127	711	626	305	455	470	530	294	305	699	16	1,251.9	7.71
110GSL	5,500	1,330	3,939,100	445	387	140	775	682	333	495	521	584	322	333	749	16	1,637.5	9.07
120GSL	7,000	1,200	5,013,400	495	425	152	838	722	353	546	572	648	341	353	826	16	2,077.5	10.89

Coupling weight, without bore machining.

More products

product image

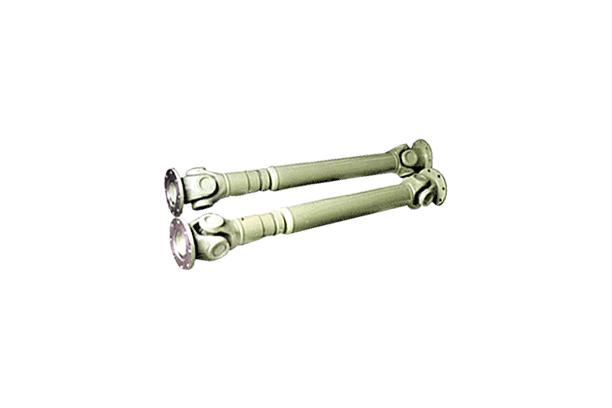

Universal Spindle Type Equipment KitHH-315-CK-03L, HH-315-CK-03M, HH-315-CK-03C, HH-345-CK-03L, HH-345-CK-03M, HH-345-CK-03C, HH-380-CK-03L, HH-380-CK-03M, HH-380-CK-03C, HH-400-CK-01L, HH-400-CK-01M, HH-400-CK-01C, HH-400-CK-02L, HH-400-CK-02M, HH-400-CK-02C, HH-450-CK-01L, HH-450-CK-01M, HH-450-CK-01C, HH-600-CK-04L, HH-600-CK-04M, HH-600-CK-04C

product image

Rubber Flex CouplingHR-60, HR-100, HR-135, HR-180, HR-210, HR-265, HR-310, HR-400, HR-450, HR-550, HR-700, HR-950

product image

Tire CouplingHT-100, HT-120, HT-140, HT-160, HT-185, HT-220, HT-265, HT-340, HT-445, HT-550, HT-700

product image

GH Type Gear Coupling10GH, 15GH, 20GH, 25GH, 30GH, 35GH, 40GH, 45GH, 50GH, 55GH, 60GH, 70GH, 10GH, 15GH, 20GH, 25GH, 30GH, 35GH, 40GH, 45GH, 50GH, 55GH, 60GH, 70GH

product image

GD Type Gear Coupling10GD, 15GD, 20GD, 25GD, 30GD, 35GD, 40GD, 45GD, 50GD, 55GD, 60GD

product image

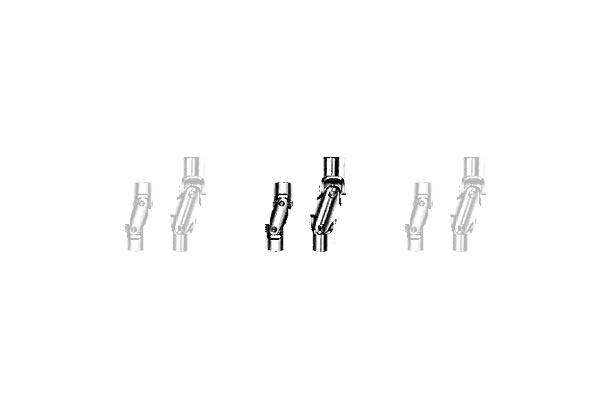

LD Type Ball Joint (Square Benk Type)LD-6, LD-8, LD-10, LD-12, LD-14, LD-16, LD-18, LD-20, LD-22, LD-25, LD-30, LD-35, LD-40, LD-45, LD-50, LD-60

product image

LS Type Ball Joint (Square Benk Type)LS-10, LS-12, LS-14, LS-16, LS-18, LS-20, LS-22, LS-25, LS-30, LS-35, LS-40, LS-45, LS-50, LS-60, LS-70, LS-80, LS-100

product image

L Type Ball Joint (Square Benk Type)L-6, L-8, L-10, L-12, L-14, L-16, L-18, L-20, L-22, L-25, L-30, L-35, L-40, L-45, L-50, L-60

product image

Universal Joint (HDF-Type)HDF 225, HDF 250, HDF 285, HDF 315, HDF 350

product image

Universal Joint (HDM-Type)HDM 225, HDM 250, HDM 250 -PK-9.01, HDM 285, HDM 285 -PK-9.01, HDM 285 -PK-9.02, HDM 315, HDM 315 -PK-9.01, HDM 350, HDM 390

product image

Universal Joint (HDB-Type)HDB 58, HDB 65, HDB 75, HDB 90, HDB 100, HDB 120, HDB 150, HDB 160, HDB 180, HDB 200, HDB 225

product image

W8-D/C Type Disc Flexible Coupling

product image

W6-D/C Type Disc Flexible Coupling

product image

product image

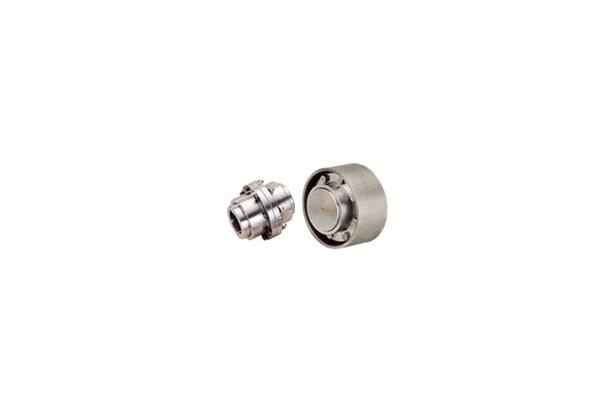

Double Type Quick Clutch Coupling120-QCC-0001, 120-QCC-0002, 120-QCC-0003
