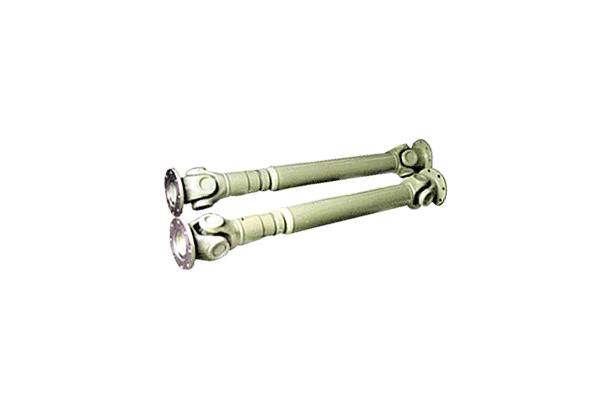

Universal Joint (HDF-Type)
Model Name
HDF 225
Series
Universal Joint
Data
-
Manufacturer information
provider logo
HYUNDAI INDUSTRIAL MACHINERY

Power Transmission Device Manufacturer, Universal Joint, Coupling

Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139002
Product Name
Universal Joint (HDF-Type)
Model Name
HDF 225, HDF 250, HDF 285, HDF 315, HDF 350
Size
-
Weight
-
Product Details

Drawing



Specification

SIZE SIZE Ty Tw β A P.C.D/B C F G M SP S 적촌(BOLTN×D) Lz La
HYUNDAI DIN kgf · m ° mm mm mm mm mm mm mm mm EA mm mm
HDF 225 190.50 1250 1650 15° 225 196 140 5 16 108 82 121 8ר16 800 75
HDF 250 190.55 1750 2700 250 218 140 6 18 130 100 152.4 8ר18 965 90
HDF 285 190.60 2350 3300 285 245 175 7 20 135 100 165.2 8ר20 1050 100
HDF 315 190.65 3300 4600 315 280 175 7 22 150 130 216.3 8ר22 1250 120
HDF 350 190.70 5350 7500 350 310 220 8 25 170 130 232 8ר22 1390 135

Ty : Fatigue Torque
Tw : Max. Torque
β : Max. Angle
La : Length Compensation
Lz : Min. Telescopic Length
