This product is manufactured by
HYUNDAI INDUSTRIAL MACHINERY
Manufacturer information
HYUNDAI INDUSTRIAL MACHINERY
Power Transmission Device Manufacturer, Universal Joint, Coupling
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139000
Product Name

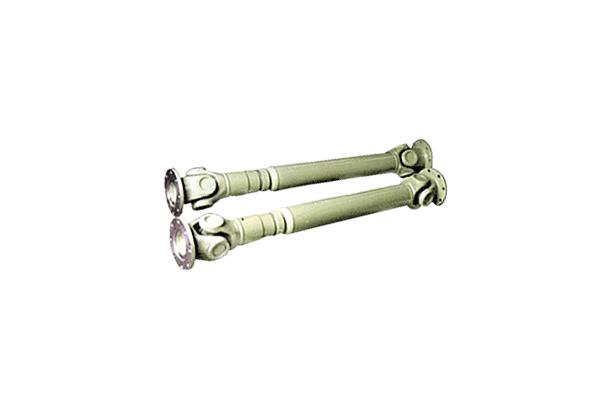

Universal Joint (HDM-Type)
Model Name
HDM 225, HDM 250, HDM 250 -PK-9.01, HDM 285, HDM 285 -PK-9.01, HDM 285 -PK-9.02, HDM 315, HDM 315 -PK-9.01, HDM 350, HDM 390
Size
-
Weight
-
Product Details
Drawing
Specification
| SIZE | Ty | Tw | β | A | P.C.D(B) | CH7 | F | G | K | M | SP | S | Z | d1(C12) | Lz | La |
| HYUNDAI | kgf · m | ° | mm | mm | mm | mm | mm | mm | mm | mm | mm | EA | mm | mm | mm | |
| HDM 225 | 1400 | 1960 | 15° | 225 | 196.0 | 140 | 5 | 15 | 182 | 115 | 80 | 114.3 | 8 | 16 | 820 | 110 |
| HDM 250 | 2700 | 3800 | 15° | 250 | 218.0 | 140 | 6 | 18 | 225 | 130.0 | 100 | 139.8 | 8 | 18 | 950 | 130 |
| HDM 250 -PK-9.01 |
3100 | 4370 | 10° | 315 | 290 | 258 | 5 | 20 | 220 | 125 | 175 | 248 | 14 | 14 | 600 | 50 |
| HDM 285 | 4200 | 5900 | 15° | 285 | 245.0 | 175 | 7 | 20 | 250 | 155 | 115 | 165.2 | 8 | 20 | 980 | 130 |
| HDM 285 -PK-9.01 |
4200 | 5900 | 15° | 250 | 218 | 140 | 6 | 20 | 260 | 155 | 115 | 165.2 | 8 | 18 | 820 | 50 |
| HDM 285 -PK-9.02 |
4900 | 6900 | 10° | 315 | 290 | 258 | 5 | 20 | 260 | 135 | 190 | 250 | 14 | 14 | 610 | 30 |
|
HDM 315 |
6000 | 8400 | 15° | 315 | 280.0 | 175 | 7 | 22 | 285 | 180 | 132 | 190.7 | 8 | 22 | 1050 | 130 |
| HDM 315 -PK-9.01 |
6000 | 8400 | 10˚ | 355 | 330 | 22 | 280 | 155 | 200 | 18 | 14 | 950 | 50 | |||
| HDM 350 | 10,000 | 15,000 | 15° | 350 | 245 | 220 | 8 | 25 | 315 | 210 | 155 | 216.3 | 10 | 22 | 1265 | 130 |
| HDM 390 | 15,000 | 20,000 | 15° | 390 | 350 | 250 | 8 | 32 | 370 | 210 | 170 | 267.4 | 10 | 24 | 1400 | 130 |
Ty : Fatigue Torque
Tw : Max. Torque
β : Max. Angle
La : Length Compensation
Lz : Min. Telescopic Length
