HYUNDAI INDUSTRIAL MACHINERY

HYUNDAI INDUSTRIAL MACHINERY

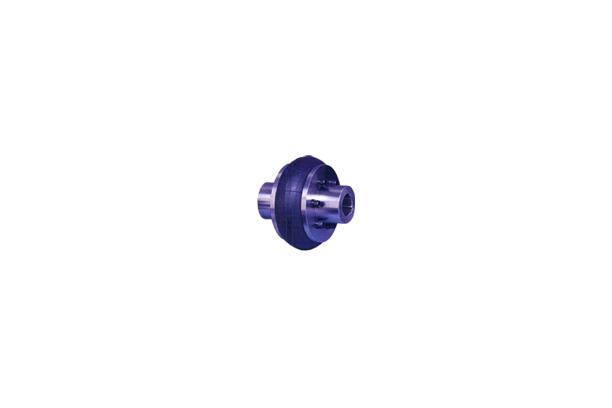

Rubber Flex Coupling

Model

Series

Rubber Coupling


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

Drawing



Specification

SIZE Basic
Torque
(kg·cm)
Max.
Speed
r.p.m
Bore Dimension(mm) Weight
(kg)
Size
Min Max A D L C E Gap B F
HR-60 100 4.000 8 12 60 20 32 105 11 5 25 295 0.28 HR-60
HR-100 300 4.000 10 22 100 36 66 26 14 10 40 54 1.21 HR-100
HR-135 800 4.000 16 30 135 48 90 35 20 14 53 70 2.87 HR-135
HR-180 1,500 3.000 23 35 180 64 120 46 28 20 70 95 6.38 HR-180
HR-210 3,000 3.000 28 50 210 76 143 54 35 27 83 110 9.40 HR-210
HR-265 7,500 2.000 33 60 265 95 178 67 44 32 105 140 19 HR-265
HR-310 12,500 2.000 36 70 310 112 208 75 58 36 121 165 31 HR-310
HR-400 27,500 1.600 40 85 400 145 270 100 70 44 153 210 70 HR-400
HR-450 50,000 1,250 55 100 450 165 300 110 80 50 171 240 101 HR-450
HR-550 100,000 1.000 90 130 550 200 365 130 105 53 196 280 170 HR-550
HR-700 200,000 800 100 160 700 255 460 165 130 70 256 364 358 HR-700
HR-950 500,000 600 125 225 950 345 610 220 170 82 372 500 950 HR-950
