Product Name

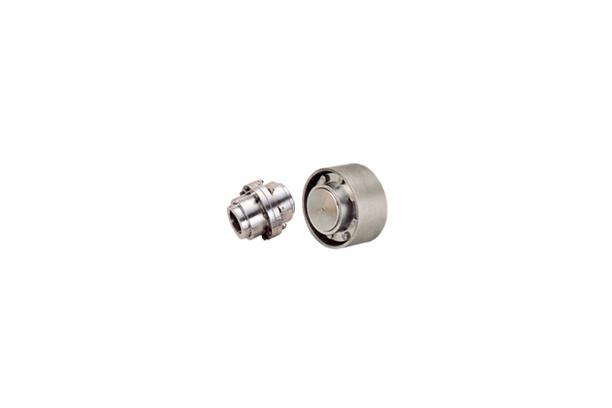

GD Type Gear Coupling
Model Name
10GD, 15GD, 20GD, 25GD, 30GD, 35GD, 40GD, 45GD, 50GD, 55GD, 60GD
Size
-
Weight
-
Product Details
Drawing
Specification
| Size | HP Per 100 rpm |
Max. Speed (rpm) |
Basic Torque (kg·cm) |
Bore dia (mm) | Dimensions (mm) | Cplg wt (kg) |
Lube wt (kg) |
|||||||
| Max. | Min. | A | B | C | D | E | J | Gap | ||||||
| 10GD | 12 | 8,000 | 8,594 | 48 | 13 | 116 | 89 | 43 | 69 | 84 | 39 | 3 | 4.5 | 0.04 |
| 15GD | 27 | 6,500 | 19,337 | 60 | 19 | 152 | 101 | 49 | 86 | 105 | 48 | 3 | 9.1 | 0.07 |
| 20GD | 50 | 5,600 | 35,810 | 73 | 25 | 178 | 127 | 62 | 105 | 126 | 59 | 3 | 15.9 | 0.11 |
| 25GD | 90 | 5,000 | 64,458 | 92 | 32 | 213 | 159 | 77 | 131 | 155 | 72 | 5 | 25.9 | 0.23 |
| 30GD | 150 | 4,400 | 107,430 | 105 | 38 | 240 | 187 | 91 | 152 | 180 | 84 | 5 | 43.1 | 0.36 |
| 35GD | 230 | 3,900 | 164,726 | 124 | 51 | 279 | 218 | 106 | 178 | 211 | 98 | 6 | 68.0 | 0.54 |
| 40GD | 350 | 3,600 | 250,670 | 146 | 64 | 318 | 248 | 121 | 210 | 245 | 111 | 6 | 97.5 | 0.91 |
| 45GD | 480 | 3,200 | 343,776 | 165 | 76 | 346 | 278 | 135 | 235 | 274 | 123 | 8 | 136.1 | 1.04 |
| 50GD | 650 | 2,900 | 465,530 | 178 | 89 | 389 | 314 | 153 | 254 | 306 | 141 | 8 | 190.5 | 0.77 |
| 55GD | 850 | 2,650 | 608,770 | 197 | 102 | 425 | 344 | 168 | 279 | 334 | 158 | 8 | 249.5 | 2.22 |
| 60GD | 1,100 | 2,450 | 787,820 | 222 | 114 | 457 | 384 | 188 | 305 | 366 | 169 | 8 | 306.2 | 3.18 |
Coupling weight, without bore machining.
