This product is manufactured by
HYUNDAI INDUSTRIAL MACHINERY
Manufacturer information
HYUNDAI INDUSTRIAL MACHINERY
Power Transmission Device Manufacturer, Universal Joint, Coupling
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
HYUNDAI INDUSTRIAL MACHINERY
Product Type
Machine
Brand
-
SKU
139016
Product Name

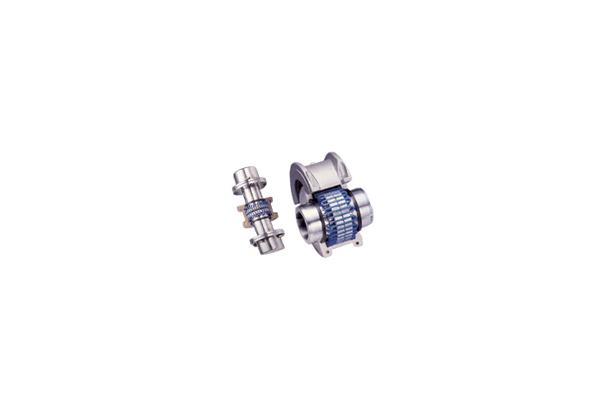

TH Type Taper Grid Coupling
Model Name
1020, 1030, 1040, 1050, 1060, 1070, 1080, 1090, 1100, 1110, 1120, 1130, 1140, 1150, 1160, 1170, 1180, 1190, 1200
Size
-
Weight
-
Product Details
Drawing
Specification
| Size | HP Per 100 rpm |
Max. Speed (rpm) |
Basic Torque (kg·cm) |
bore Dia (mm) |
Dimensions (mm) | Gap (mm) | Cplg wt (kg) |
Lube wt (kg) |
|||||||
| Max. | Min. | A | B | C | D | E | Min. | Nomal | Max. | ||||||
| 1020 | 0.68 | 4,500 | 486 | 30 | 12 | 101.6 | 98.0 | 47.5 | 39.7 | 66.5 | 1.5 | 3 | 4.5 | 1.9 | 0.03 |
| 1030 | 1.93 | 4,500 | 1,383 | 35 | 12 | 110.0 | 98.0 | 47.5 | 49.2 | 68.3 | 1.5 | 3 | 4.5 | 2.6 | 0.03 |
| 1040 | 3.22 | 4,500 | 2,304 | 43 | 12 | 117.5 | 104.6 | 50.8 | 57.1 | 70.0 | 1.5 | 3 | 4.5 | 3.4 | 0.05 |
| 1050 | 5.63 | 4,500 | 4,033 | 50 | 12 | 138.0 | 123.6 | 60.3 | 66.7 | 79.5 | 1.5 | 3 | 4.5 | 5.4 | 0.05 |
| 1060 | 8.85 | 4,350 | 6,337 | 55 | 19 | 150.5 | 130.0 | 63.5 | 76.2 | 92.0 | 1.5 | 3 | 4.5 | 7.3 | 0.09 |
| 1070 | 13 | 4,125 | 9,217 | 65 | 19 | 161.9 | 155.4 | 76.2 | 87.3 | 95.0 | 1.5 | 3 | 4.5 | 10 | 0.11 |
| 1080 | 27 | 3,600 | 19,010 | 78 | 27.0 | 194.0 | 180.8 | 88.9 | 104.8 | 116.0 | 1.5 | 3 | 4.5 | 18 | 0.17 |
| 1090 | 48 | 3,600 | 34,564 | 95 | 27.0 | 213.0 | 199.8 | 98.4 | 123.8 | 122.0 | 1.5 | 3 | 6 | 25 | 0.25 |
| 1100 | 81 | 2,400 | 58,183 | 107 | 41 | 250.0 | 245.7 | 120.6 | 142.0 | 155.5 | 1.5 | 3 | 6 | 42 | 0.43 |
| 1110 | 121 | 2,250 | 86,411 | 117 | 41 | 270.0 | 258.5 | 127.0 | 160.3 | 161.5 | 1.5 | 4.5 | 9.5 | 54 | 0.51 |
| 1120 | 177 | 2,025 | 126,736 | 136 | 60 | 308.0 | 304.4 | 149.2 | 179.4 | 191.5 | 1.5 | 4.5 | 9.5 | 81 | 0.73 |
| 1130 | 257 | 1,800 | 184,343 | 165 | 67 | 346.0 | 329.8 | 161.9 | 217.5 | 195.0 | 1.5 | 6 | 12.5 | 121 | 0.91 |
| 1140 | 370 | 1,650 | 264,993 | 184 | 67 | 384.0 | 371.6 | 182.8 | 254.0 | 201.0 | 1.5 | 6 | 12.5 | 178 | 1.13 |
| 1150 | 515 | 1,500 | 368,686 | 203 | 108 | 453.1 | 371.8 | 182.9 | 269.2 | 271.3 | 1.5 | 6 | 12.5 | 234 | 1.95 |
| 1160 | 724 | 1,350 | 518,465 | 228 | 120.7 | 501.4 | 402.2 | 198.0 | 304.8 | 278.9 | 1.5 | 6 | 12.5 | 317 | 2.81 |
| 1170 | 965 | 1,225 | 691,286 | 279 | 133.4 | 566.4 | 437.8 | 215.9 | 355.6 | 304.3 | 1.5 | 6 | 12.5 | 448 | 3.49 |
| 1180 | 1,338 | 1,100 | 958,584 | 311 | 152.4 | 629.9 | 483.6 | 238.8 | 393.7 | 321.1 | 1.5 | 6 | 12.5 | 619 | 3.76 |
| 1190 | 1,770 | 1,050 | 1,267,358 | 339 | 152.4 | 675.6 | 524.2 | 259.1 | 436.9 | 325.1 | 1.5 | 6 | 12.5 | 776 | 4.40 |
| 1200 | 2,413 | 900 | 1,728,216 | 361 | 177.8 | 756.9 | 564.8 | 279.4 | 497.8 | 355.6 | 1.5 | 6 | 12.5 | 1,057 | 5.62 |
Coupling weight, without bore machining.
