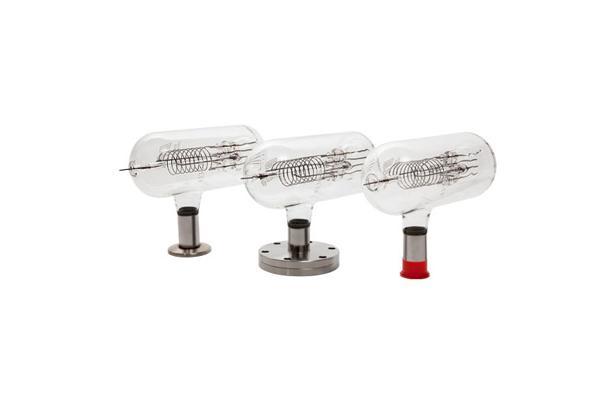

Gauge Type

ETI Series4336 and any Bayard-Alpert Gauges

Mounting Position

Vertical

Envelope

Nonex 7720 Glass

Tabulation

3/4", 1" Pyrex or Nonex Glass,

3/4", 1" Kovar.

flanges are available

Collector

0.005"Tungsten

Filament

Thoria-Coated Iridium (single) or Tungsten (dual)

Grid

Tungsten Helix Configuration

Operating Pressure

1.0 x 10(-10) to 1.0 x10(-3) Torr

Bake-out Temperature

250°C

Collector Potential

0 Volts

Shield Potential

N/A

Grid Potential

+150~ + 180 VDC

Filament Current

4 ~ 6 Amps

Filament Voltage

3 ~ 5 VDC

Filament Potential

+30 VDC
