product Image
전원 공급장치 (트로리바) (TROLLEY BAR)
Model Name
-
Series
CRANE COMPONENT
View All
Data
-
Manufacturer information
provider logo
SG ENGINEERING

Industrial Hoists, Cranes, Crane Parts Manufacturer

Problem with product info?
Update request
Manufacturer
SG ENGINEERING
Product Type
Machine
Brand
-
SKU
133749
Product Name
전원 공급장치 (트로리바) (TROLLEY BAR)
Model Name
-
Size
-
Weight
-
Product Details

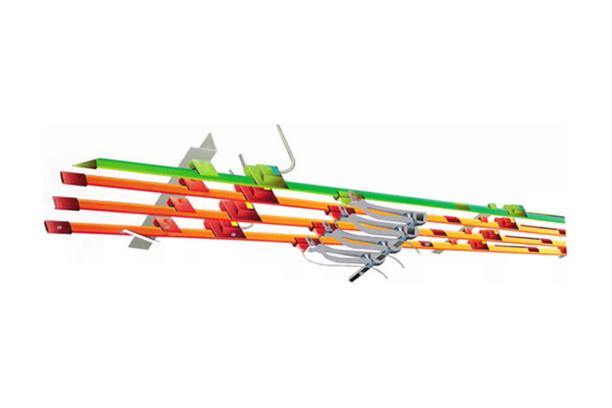

Trolley Bar

This is to power-supply the installation of Traveler / Crossway Crane, with the best working efficiency / safety / durability / cost-efficiency devoid of danger for derailment and fire of cable. stretches 3M with heat-resisting features for 80℃ and 100℃



No. Name Note
1 Trolley-Bar 60A, 90A, 200A, 300A, 500A
2 Collector Collects power for Trolley Bar by way of Transfer Truck Hoist
3 Joint Cover Insulation means for Bar Joint
4 Joint Keeper Attach Terminal to where Bar joins
5 Power Feeder Power Conducting Wire on to compensate for Voltage Reinforcement occurred by wire elongation Put Lead-in at the dead center. Put more Leads-in to compensate for extra-high Voltage Reinforcement exceeding 3%
6 End Cap Attach at the end of Bar
7 Hanger Bracket Joint Bar to Bracket to fixate, at the interval of 1.5M (Vertical) / 1.5M (Horizontal) / 0.5M (Curve)
8 Hanger Clamp Join Trolley Bar to Bracket and fixate on the flnak or ceiling
9 Mounting Bar Fixate Collector
10 Expension Section Preven causing Bar to be bent upon temperature variation
11 Connector Tool Connector Tool for Trolley Bar and Bar





Trolley - Bar Collector Joint Keeper Power Feeder
End Cap Joint Cover Hanger Clamp Hanger Braket
Mounting Bar Connector Tool Expantion Section
