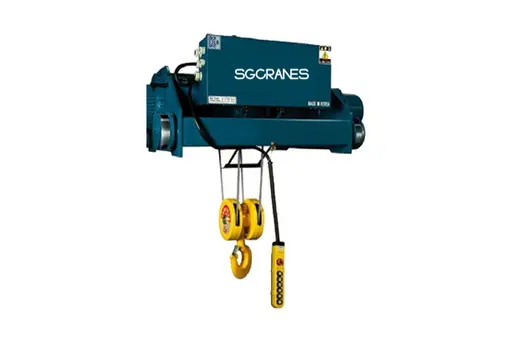

product Image
와이어 호이스트 (WIRE ROPE HOIST (DOUBLE RAIL HOIST))
Model Name
SD 2-M
Series
HOIST
View All
Data
-
Manufacturer information
provider logo
SG ENGINEERING

Industrial Hoists, Cranes, Crane Parts Manufacturer

Problem with product info?
Update request
Manufacturer
SG ENGINEERING
Product Type
Machine
Brand
-
SKU
133331
Product Name
와이어 호이스트 (WIRE ROPE HOIST (DOUBLE RAIL HOIST))
Model Name
SD 2-M, SD 2.8-M, SD 3-M, SD 5-M
Size
-
Weight
-
Product Details

Double Rail Type Hoist with Motor Driven Trolley

Table

Model SD 2-M SD 2.8-M SD 3-M SD 5-M
Capacity (ton) 2 2.8 3 5
Type
Hoisting Speed
 High-High SD 2-H12-MH SD 2.8-H12-MH SD 3-H12-MH SD 5-H12-MH
High-Low SD 2-H12-ML SD 2.8-H12-ML SD 3-H12-ML SD 5-H12-ML
Traversing
 High-High SD 2-L12-MH SD 2.8-L12-MH SD 3-L12-MH SD 5-L12-MH
High-Low SD 2-L12-ML SD 2.8-L12-ML SD 3-L12-ML SD 5-L12-ML
Hoist
 Max. lift(m) 12 12(14.5) 12(14.5) (8.5)12
Hoisting Speed
(m/min)
 High Speed 50/60(Hz) 8.4/10 7.5/9 7.5/9 4.7/5.6
Low Speed 50/60(Hz) 4.2/5 3.7/4.5 3.7/4.5 3.5/4.2
Hoisting Motor
(Kw x P)
 High Speed 3.7 x 4 4.8 x 4 5.5 x 4 5.5 x 6
Low Speed 1.8 x 8 2.4 x 8 2.8 x 8 4.2 x 8
Wire Rope
 Construction 6 x 37
Die(mm) x No.of Ropes 8 x 4 9 x 4 9 x 4 12.5 x 4
Brake DC Magnet Disc Brake
Traversing
Traversing
Speed (m/min)
 High Speed 50/60(Hz) 20/24
Low Speed 50/60(Hz) 13/16
Traversing
Motor (Kw x P)
 High Speed 0.75 x 4 0.75 x 4 0.75 x 4 0.75 x 4
Low Speed 0.5 x 6 0.5 x 6 0.5 x 6 0.5 x 6
  Brake DC Magnet Disc Brake
Dimensions
(approx.)(mm)
 H 415 420 420 510
R 950 950(1150) 950(1150) 950(1150)
A 465 465 465 510
B 390 390 390 470
C 500 500 600 630
G 740 785 785 935
K 690 705 705 830
W 650 650 650 760
D 47 47 47 47
L 680 690 690 890
M 115 115 115 125
N 90 90 90 110
P 140 140 140 165
Q 170 170 170 190
Min.Radius of Curvature(m) 450 550 550 850
Weight (approx.) (kg) 15 15 15 15
