product Image
에어 발라서 (AIR BALANCER)
Model Name
KAB-070-200
Series
HOIST
View All
Data
-
Manufacturer information
provider logo
SG ENGINEERING

Industrial Hoists, Cranes, Crane Parts Manufacturer

Problem with product info?
Update request
Manufacturer
SG ENGINEERING
Product Type
Machine
Brand
-
SKU
133465
Product Name
에어 발라서 (AIR BALANCER)
Model Name
KAB-070-200, KAB-100-300, KAB-160-200, KAB-230-200, KAB-C070-200, KAB-C100-300, KAB-C160-200, KAB-C230-200
Size
-
Weight
-
Product Details

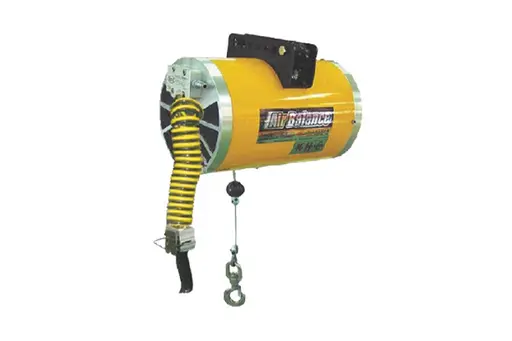

Air Balancer

  • Offering both of hoisting and floating at the same time as well as no jumping phenomenon and adjustable precise positioning up to 400mm both for upward and downward.

  • High speed of 1000mm/sec with adjustable speed by control valve

  • Automatic self floating interlocked with braking and lower noise level

  • Safety feature by overload limit device

  • Additional check valve for interruption of air supply

  • No lubrication is required.

Single Wire Rope Units [Air Pressure 7kgf/cm²]

Model
 Capacity (Tons) Lifting Speed (m/min) Net Weight
kg lbs mm in kg lbs
KAB-070-200 60 132 2000 79 23 51
KAB-100-300 100 220 3000 118 42.5 94
KAB-160-200 150 331 2000 79 40 88
KAB-230-200 220 485 2000 79 50 110

Single Chain Units [Air Pressure 7kgf/cm²]

Model
 Capacity (Tons) Lifting Speed (m/min) Net Weight
kg lbs mm in kg lbs
KAB-C070-200 60 132 1700 70 26 51
KAB-C100-300 100 220 2700 106 46 102
KAB-C160-200 150 331 1700 70 43 95
KAB-C230-200 220 485 1700 70 53 117
