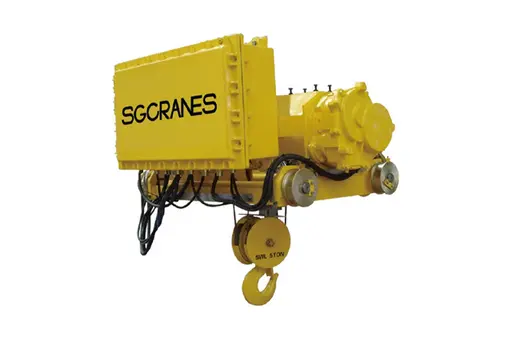

product Image
방폭 호이스트 (EXPLOSION PROOF HOIST (DOUBLE RAIL HOIST))
Model Name
Z-SD 2-M
Series
HOIST
View All
Data
-
Manufacturer information
provider logo
SG ENGINEERING

Industrial Hoists, Cranes, Crane Parts Manufacturer

Problem with product info?
Update request
Manufacturer
SG ENGINEERING
Product Type
Machine
Brand
-
SKU
133364
Product Name
방폭 호이스트 (EXPLOSION PROOF HOIST (DOUBLE RAIL HOIST))
Model Name
Z-SD 2-M, Z-SD 3-M, Z-SD 5-M
Size
-
Weight
-
Product Details

Double Rail

Table

Model Z-SD 2-M Z-SD 3-M Z-SD 5-M
Capacity (ton) 2 3 5
Hoist
 Max. lift(m) 12
Hoisting Speed
(m/min)
 High Speed 50/60(Hz) 4.6/5.5 5/6 5/6
Low Speed 50/60(Hz) 3.1/3.7 3.3/4 3.3/4
Hoisting Motor
(Kw x P)
 High Speed 2.2 x 4 3.7 x 4 5.5 x 4
Low Speed 1.5 x 6 2.2 x 6 3.7 x 6
Wire Rope
 Construction 6 x WS(36) 6 x WS(36) 6 x SES(37)
Die(mm) x No.of Ropes 8 x 4 9 x 4 11.2 x 4
Brake DC magnet disc
Traversing
Traversing
Speed (m/min)
 High Speed 50/60(Hz) 20/24
Low Speed 50/60(Hz) 13.3/16
Traversing
Motor (Kw x P)
 High Speed 0.75 x 4 0.75 x 4 0.75 x 4
Low Speed 0.5 x 6 0.5 x 6 0.5 x 6
  Brake DC Magnet Disc Brake
Dimensions
(approx.)(mm)
 H 350 420 510
R 900 900 1150
A 624 631 704
B 387 410 488
C 860 860 880
G 611 647 816
K 955 1030 1185
W 590 620 760
D 47 47 47
L 699 690 904
M(N) 326(95) 326(95) 332(100)
P 140 140 165
Weight (approx.) (kg) 590 720 1030
Traversing Rail (kg/m) 15 15 15
