와이어 호이스트 (WIRE ROPE HOIST (CREEP SPEED))
Model Name
SN 1-M
Series
HOIST
View All
Data
-
Manufacturer information
provider logo
SG ENGINEERING

Industrial Hoists, Cranes, Crane Parts Manufacturer

Problem with product info?
Update request
Manufacturer
SG ENGINEERING
Product Type
Machine
Brand
-
SKU
133333
Product Name
와이어 호이스트 (WIRE ROPE HOIST (CREEP SPEED))
Model Name
SN 1-M, SN 2-M, SN 2.8-M, SN 3-M, SN 5-M
Size
-
Weight
-
Product Details

Regular Type Creep Hoist with Motor Driven Trolley

Table

Model SN 1-M SN 2-M SN 2.8-M SN 3-M SN 5-M
Capacity (ton) 1 2 2.8 3 5

Traversing
 High Speed C-SN 1-H6(12)-MH C-SN 2-H6(12)-MH C-SN 2.8-H6(12)-MH C-SN 3-H6(12)-MH C-SN 5-H6(12)-MH
Low Speed C-SN 1-H6(12)-ML C-SN 2-H6(12)-ML C-SN 2.8-H6(12)-ML C-SN 3-H6(12)-ML C-SN 5-H6(12)-ML
Hoist
 Max. lift(m) 6(12)
Hoisting Speed(m/min)
High / Creep Speed
 50Hz 10/1 8.4/0.84 7.5/0.75 7.5/0.75 4.7/0.47
60Hz 12/1.2 10/1 9/0.9 9/0.9 5.6/0.56
Hoisting Motor(Kw x P) High / Creep Speed 2.4/0.4 x 4 3.7/0.4 x 4 4.8/1.1 x 4 5.5/1.1 x 4 5.5/1 X 6
Wire Rope
 Construction 6 x 37
Die(mm) x No.of Ropes 8 x 2 10 x 2 12.5 x 2 12.5 x 2 16 x 2
Brake DC Magnet Disc Brake
Traversing
Traversing
Speed (m/min)
 High Speed 50/60(Hz) 20/24
Low Speed 50/60(Hz) 13/16
Traversing
Motor (Kw x P)
 High Speed 0.4 x 4 0.75 x 4 0.75 x 4 0.75 x 4 0.75 x 4
Low Speed 0.2 x 6 0.5 x 6 0.5 x 6 0.5 x 6 0.5 x 6
  Brake DC Magnet Disc Brake

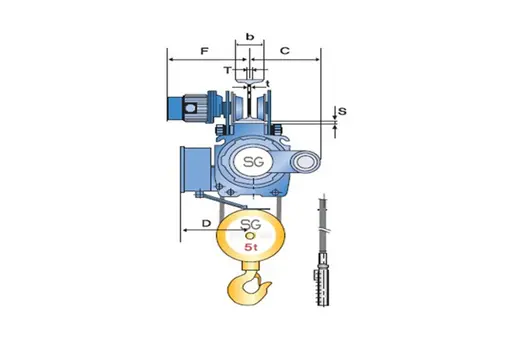

Dimensions
(approx.)(mm)
 H 815 980 1115 1115 1325
A 580(680) 620(720) 740(840) 740(840) 840(940)
B 380(480) 410(510) 440(540) 440(540) 500(585)
C 275 310 365 380 415
D 330 370 375 375 430
G 255 260 260 260 275
K 200 225 225 225 275
I-Beam and Spacing (mm)
 a x b x c C S R U C S R U C S R U C S R V C S U V
200 x 100 x 7 395 38 46 144 - - - - - - - - - - - - - - - -
250 x 125 x 7.5 395 30 71 153 445 26 71 183 445 25 71 182 445 25 71 182 455 37 61 222
300 x 150 x 10 410 28 96 156 460 24 96 182 460 23 96 182 460 23 96 182 465 32 86 224
450 x 175 x 13 - - - - - - - - - - - - - - - - 480 32 111 228
Min.Radius of Curvature(m) 1.5 1.8 1.8 1.8 2.3
Weight (approx.) (kg) 225(245) 320(355) 415(460) 415(460) 635(700)
